Exhaust System: Muffler: Installation

Install in the reverse order of removal.

NOTE:

Use a new gasket and self-locking nut.
After assembling, degrease the lubricant which was applied to the cushion rubber while removing/installing.

Tightening torque:

10 N.m (1.0 kgf-m, 7.4 ft-lb)

4 door model

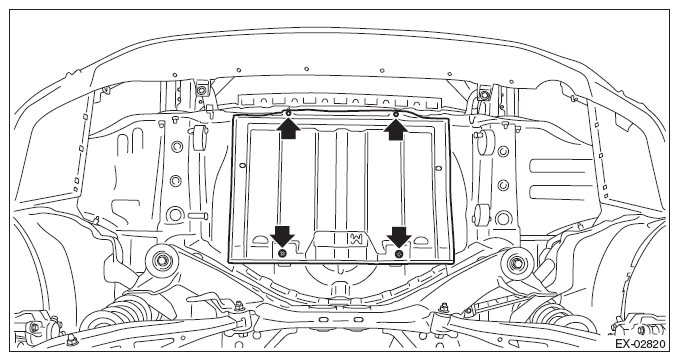

Fig 1: Locating Heat Shield Cover Mounting Screw (4 Door Model)
Courtesy of SUBARU OF AMERICA, INC.
5 door model

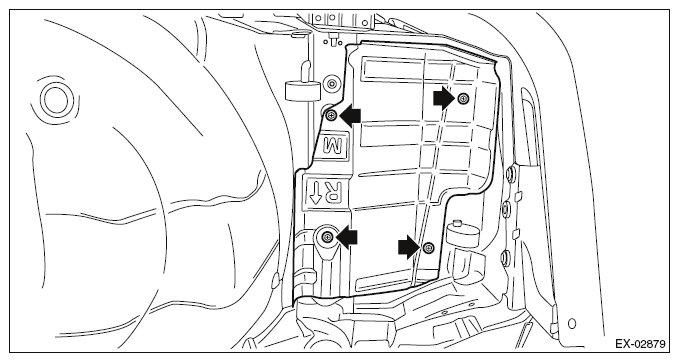

Fig 2: Locating Heat Shield Cover Mounting Screw (5 Door Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

48 N.m (4.9 kgf-m, 35.4 ft-lb)
4 door model

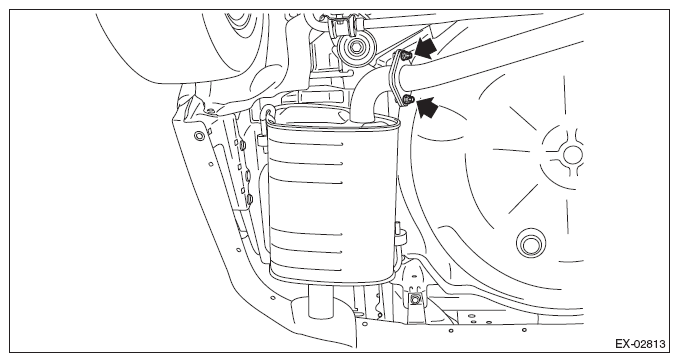

Fig 3: Locating Mufflers To Rear Exhaust Pipes Self-Locking Nuts (4 Door Model)
Courtesy of SUBARU OF AMERICA, INC.
5 door model

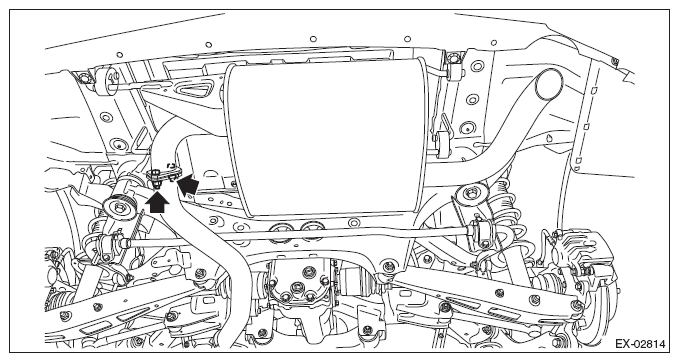

Fig 4: Locating Mufflers To Rear Exhaust Pipes Self-Locking Nuts (5 Door Model)
Courtesy of SUBARU OF AMERICA, INC.
