Oil Pump: Disassembly

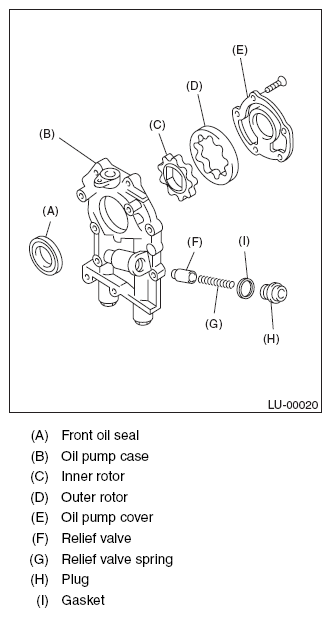

Remove the screw which secures oil pump cover and then disassemble oil pump. Inscribe alignment marks on the inner rotor and outer rotor so that they can be replaced in their original positions during reassembly.
NOTE:
Before disassembling the oil pump, remove the relief valve.
