Rear Inner Remote: Removal

  1. Disconnect the ground cable from battery. <Ref. to BATTERY , NOTE, Note.>
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear door. <Ref. to REAR DOOR , REMOVAL, Door Trim.>
  3. Remove the screw, and remove the remote assembly - door.

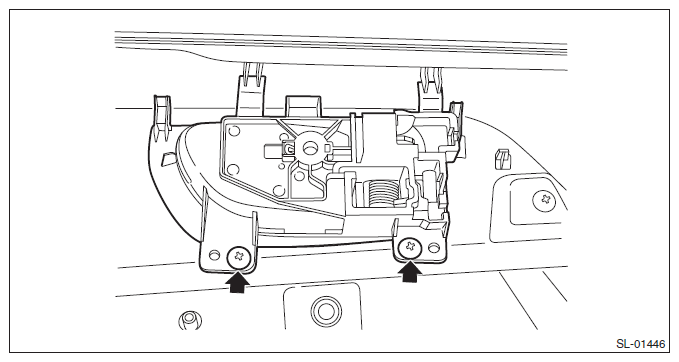

Fig 1: Locating Remote Assembly Door Screws
G08319220Courtesy of SUBARU OF AMERICA, INC.
