Section 14 (Continuously Variable Transaxle (CVT))
>>
General Description
>>
Components With Torque Specifications
>>
Transfer And Extension Case
Transfer And Extension Case
WARNING:
This page is about a different variant/trim than selected.

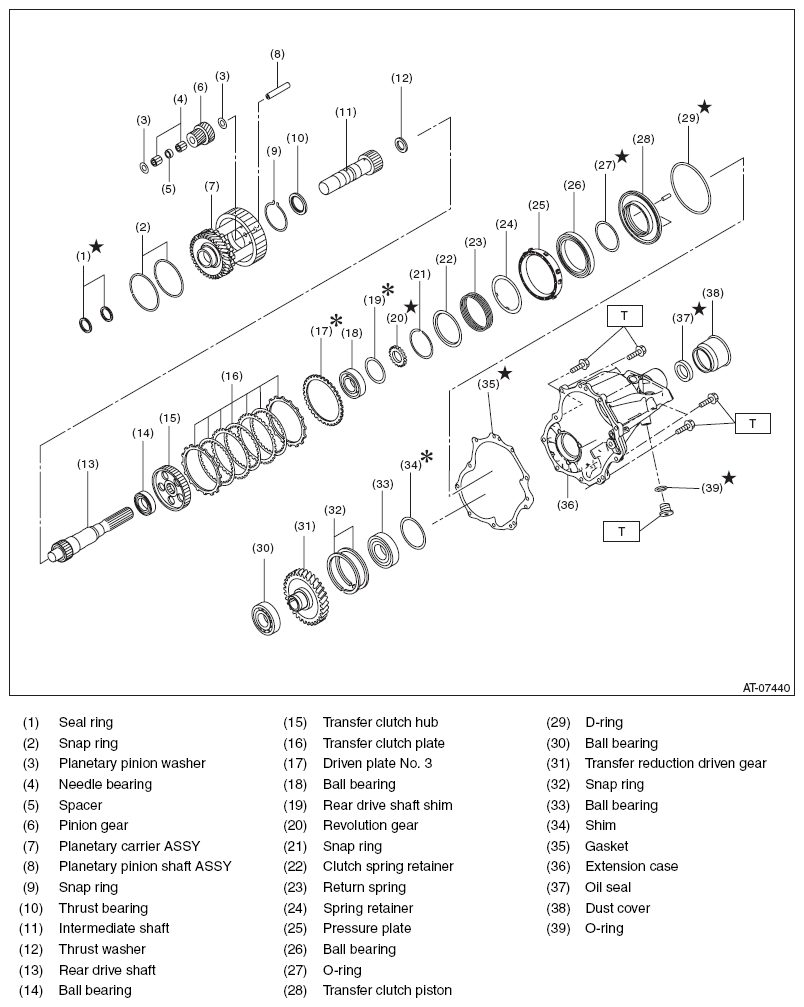

Fig 1: Exploded View Of Transfer And Extension Case With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Tightening torque: N.m (kgf-m, ft-lb)
T: 25 (2.5, 18.4)
