Vehicle Dynamics Control (VDC) System (Diagnostics): Electrical Component Location: Location

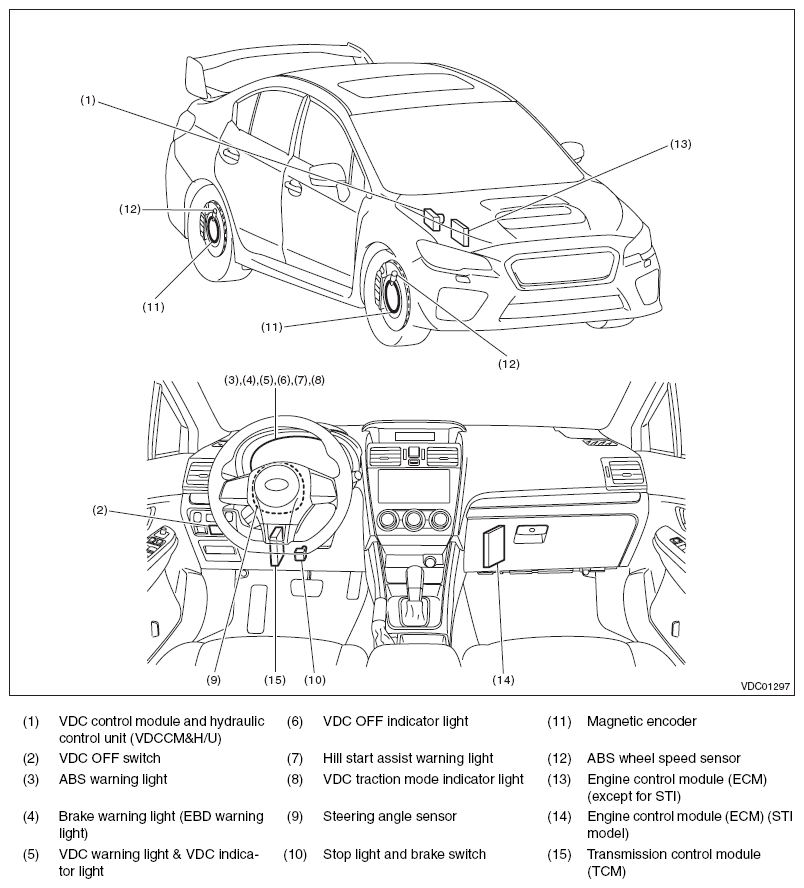

Fig 1: Vehicle Electrical Component Locations (1 Of 2)
G10269912Courtesy of SUBARU OF AMERICA, INC.

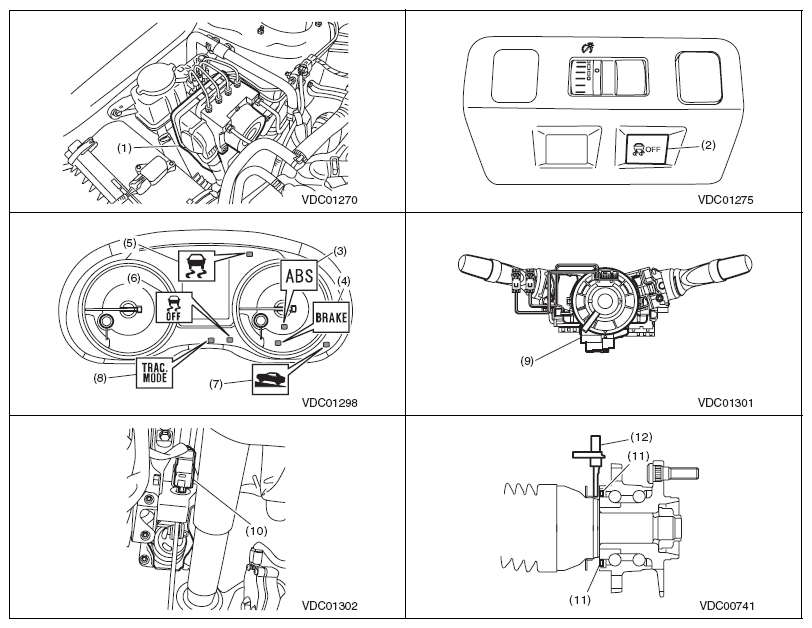

Fig 2: Vehicle Electrical Component Locations (2 Of 2)
G10269913Courtesy of SUBARU OF AMERICA, INC.
