Transmission Harness: Removal

Remove the transmission from the vehicle. <Ref. to REMOVAL , Automatic Transmission Assembly.>
Prepare for overhaul. <Ref. to PREPARATION FOR OVERHAUL .>
Remove the transmission harness ground terminal and remove the harness connectors from front wheel speed sensor, rear wheel speed sensor and secondary speed sensor.

Fig 1: Locating Front And Rear Wheel Speed Sensor Harness Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness connectors from inhibitor switch, primary speed sensor and secondary pressure sensor.

Fig 2: Locating Inhibitor Switch Harness Connectors
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission harness stay.

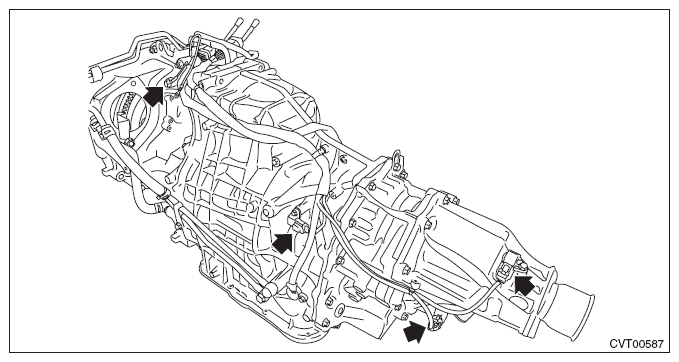

Fig 3: Locating Transmission Harness Stay Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove transmission harness connector and inhibitor harness connector from harness stay.
Remove the control valve body. <Ref. to REMOVAL , Control Valve Body.>
Remove the mounting bolt to pull out the bushing of transmission harness from transmission case round hole.

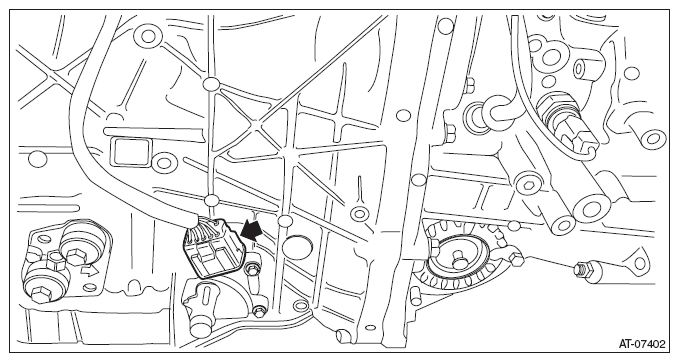

Fig 4: Locating Transmission Case Harness Mounting Bolt
Courtesy of SUBARU OF AMERICA, INC.
Remove the harness clip from transmission assembly.
