Rear Drive Shaft: Disassembly

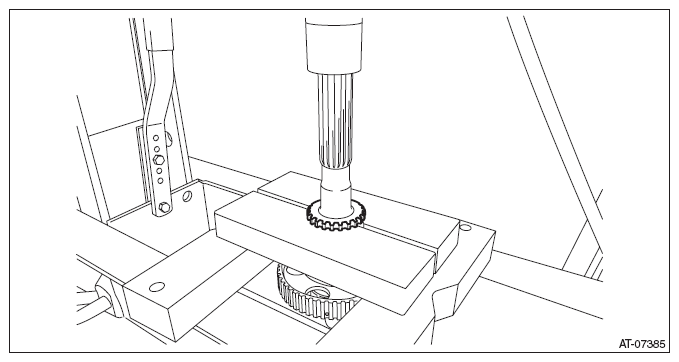

  1. Using a press, remove the revolution gear.
    Fig 1: Removing Revolution Gear Using Press
    G10268219Courtesy of SUBARU OF AMERICA, INC.

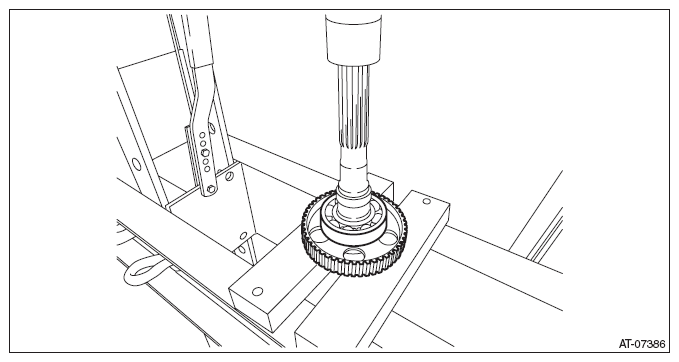

  2. Using a press, remove the front and rear ball bearings and clutch hub.
Fig 2: Removing Front And Rear Ball Bearings Using Press
G10268220Courtesy of SUBARU OF AMERICA, INC.
