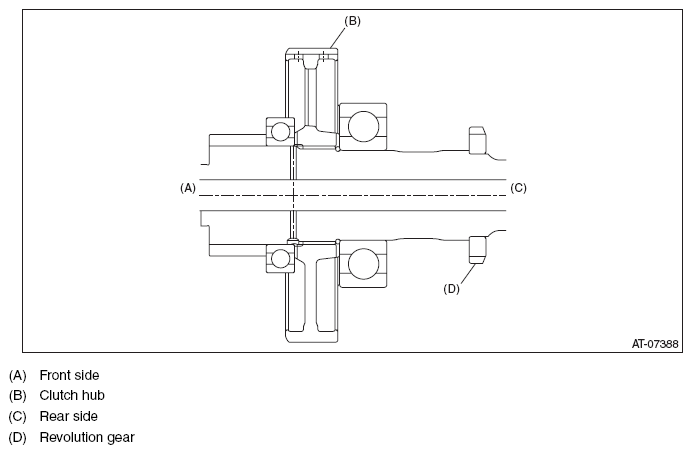

Rear Drive Shaft: Assembly
Assemble in the reverse order of disassembly.
NOTE:
- Use new ball bearings and revolution gear.
- Apply CVTF to press-fitting surface of ball bearing.
- Make sure of the direction of clutch hub.
Courtesy of SUBARU OF AMERICA, INC.
