Continuously Variable Transaxle (CVT) (Diagnostics): Electrical Component Location: Location: Sensor

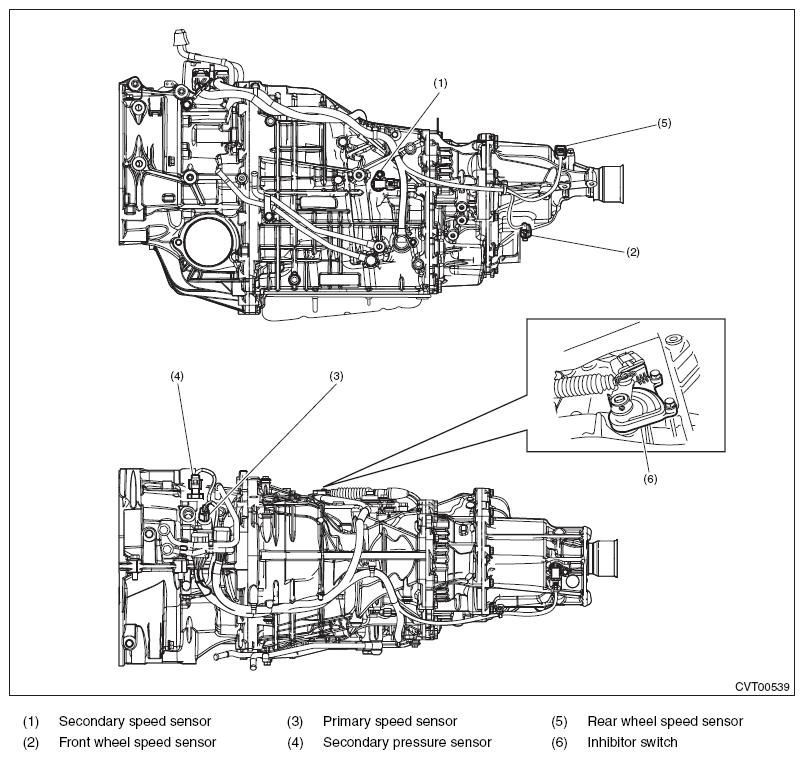

Fig 1: Sensor Component Location

G10268505

Courtesy of SUBARU OF AMERICA, INC.
