Identification Number & Label Locations

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

The V.I.N. (Vehicle Identification Numbers) is used to classify the vehicle.

Positioning of the plate label for identification

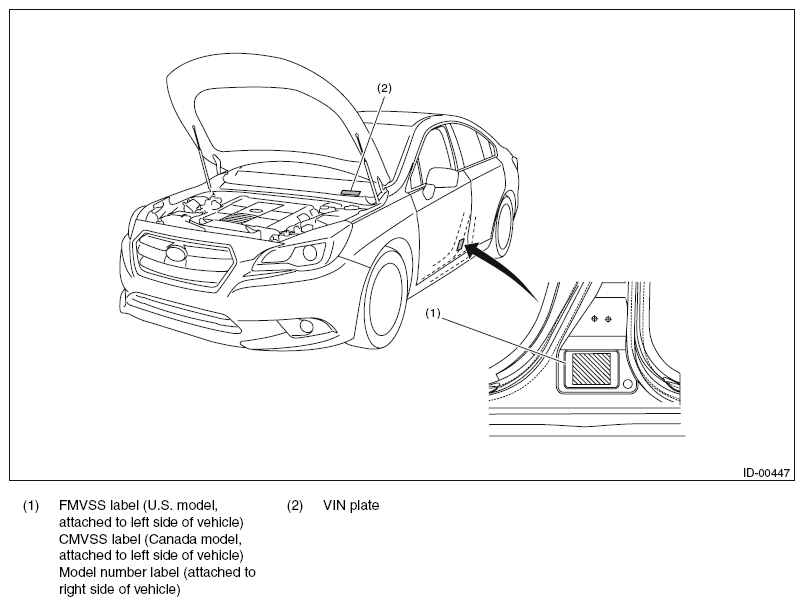

Fig 1: Identifying Vehicle Identification Numbers Label
Courtesy of SUBARU OF AMERICA, INC.
Engine

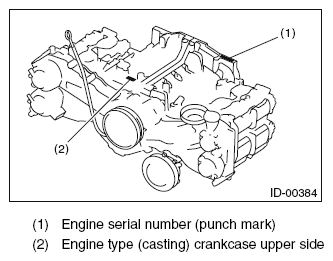

Fig 2: Identifying Engine Serial Number (Punch Mark)
Courtesy of SUBARU OF AMERICA, INC.
Automatic transmission
CVT
- TR690

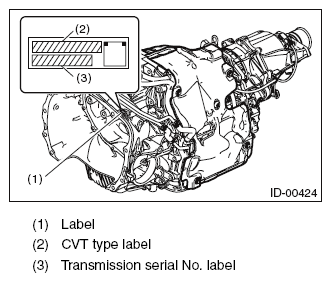

  Fig 3: Identifying CVT Transmission Serial No. Label - TR690
  Courtesy of SUBARU OF AMERICA, INC.
- TR580

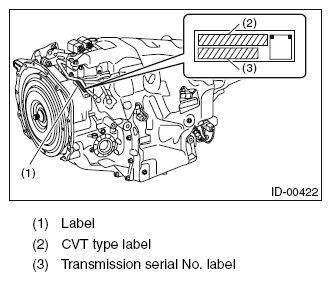

  Fig 4: Identifying CVT Transmission Serial No. Label - TR580
  Courtesy of SUBARU OF AMERICA, INC.
Manual transmission
6MT

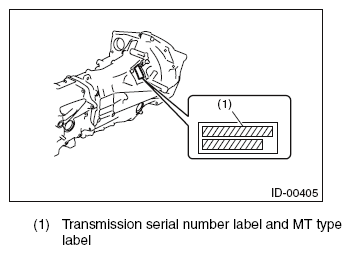

Fig 5: Identifying Transmission Serial Number Label And MT Type Label - 6MT
Courtesy of SUBARU OF AMERICA, INC.
Rear differential
T-type

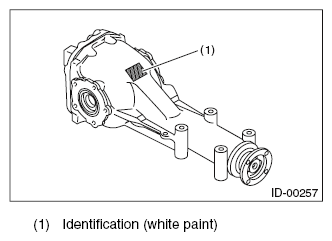

Fig 6: Identifying Rear Differential Identification Label (White Paint) - T Type
Courtesy of SUBARU OF AMERICA, INC.

VA1-type

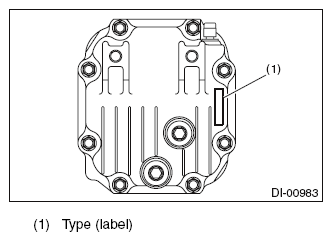

Fig 7: Identifying Rear Differential Identification Label (White Paint) - VA1 Type
Courtesy of SUBARU OF AMERICA, INC.

VA2-type

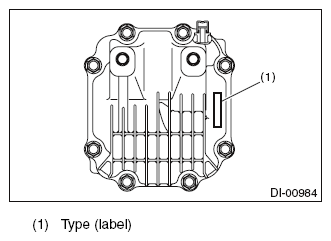

Fig 8: Identifying Rear Differential Identification Label (White Paint) - VA2 Type
Courtesy of SUBARU OF AMERICA, INC.
FMVSS label, CMVSS label
Example (FMVSS label)

Fig 9: Identifying FMVSS/CMVSS Label
Courtesy of SUBARU OF AMERICA, INC.
Model number label

Fig 10: Identifying Model Number Label
Courtesy of SUBARU OF AMERICA, INC.
