Reservoir Tank: Removal

  1. Drain the power steering fluid.
  2. Disconnect the hose - suction and the hose - return.
    CAUTION: Plug the ends of the hose and pipe to prevent foreign matter from entering.
  3. Remove the bolt and remove the reservoir - tank assembly.

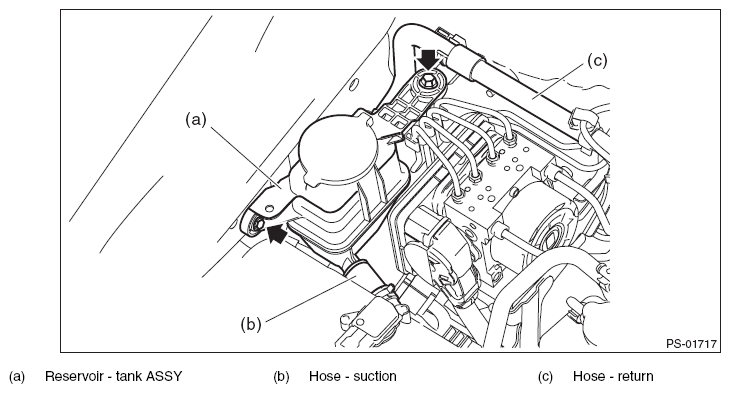

Fig 1: Locating Reservoir Bolt - Tank Assembly
G10270224Courtesy of SUBARU OF AMERICA, INC.
