Components With Torque Specifications: Notes

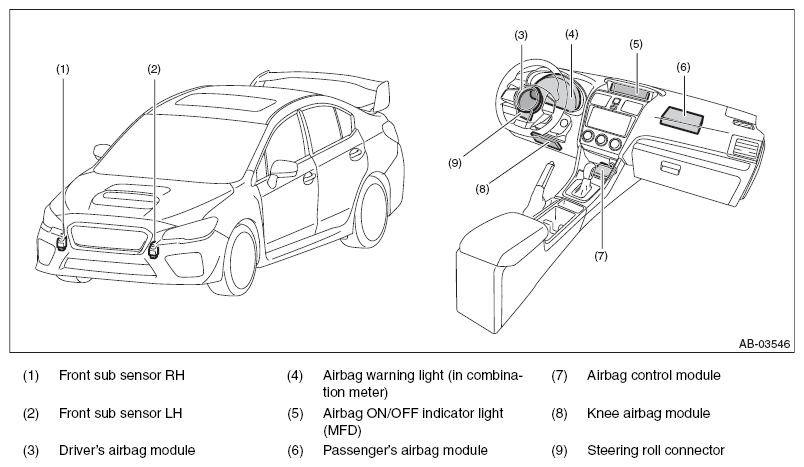

Fig 1: Air Bag System Component Location (1 Of 2)
G10270400Courtesy of SUBARU OF AMERICA, INC.

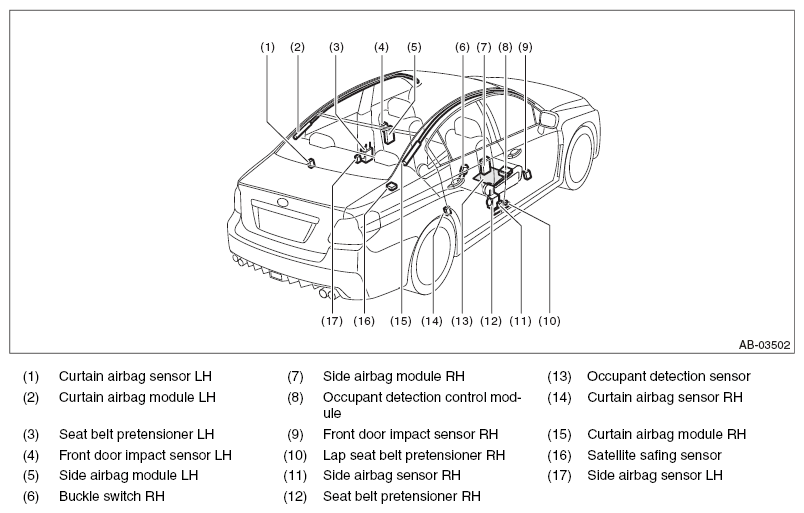

Fig 2: Air Bag System Component Location (2 Of 2)
G10270401Courtesy of SUBARU OF AMERICA, INC.
