Front Sub Sensor

CAUTION: Do not reuse mounting bolts and nuts.

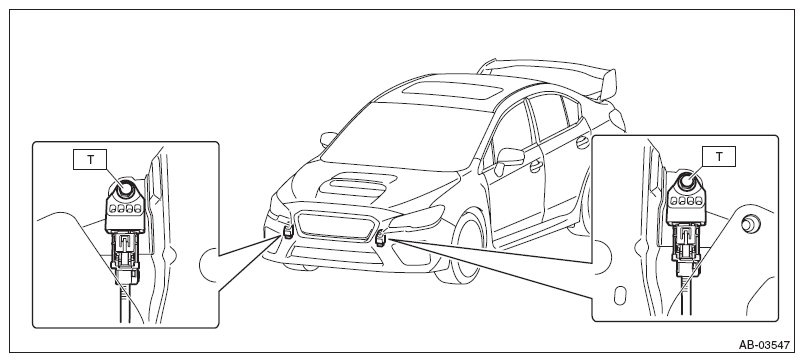

Fig 1: Identifying Front Sub Sensor

G10270408

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque:

13 N.m (1.3 kgf-m, 9.6 ft-lb)
