Transfer Clutch: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the transfer clutch assembly.

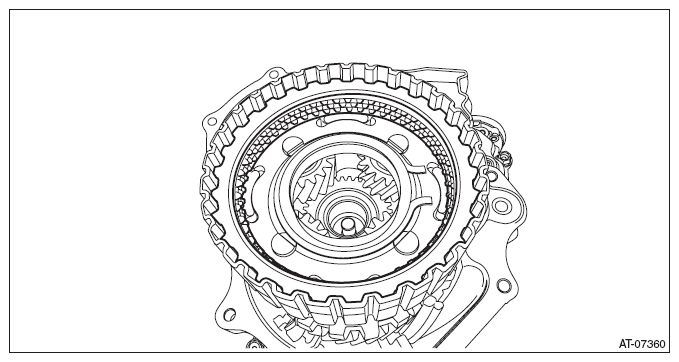

    Fig 1: Identifying Transfer Clutch Assembly
    G10268226Courtesy of SUBARU OF AMERICA, INC.
  2. Select driven plate No. 3. <Ref. to ADJUSTMENT , Rear Drive Shaft.>
  3. Attach the selected driven plate No. 3 to the center differential assembly.
  4. Install the rear drive shaft. <Ref. to INSTALLATION , Rear Drive Shaft.>
  5. Install the extension case. <Ref. to INSTALLATION , Extension Case.>
  6. Install the transmission assembly to the vehicle. <Ref. to INSTALLATION , Automatic Transmission Assembly.>
