Inhibitor Switch: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Shift the select lever to "N" range.
  2. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Note.>
  3. Lift up the vehicle.
  4. Remove the snap pin and washer from the shifter arm.

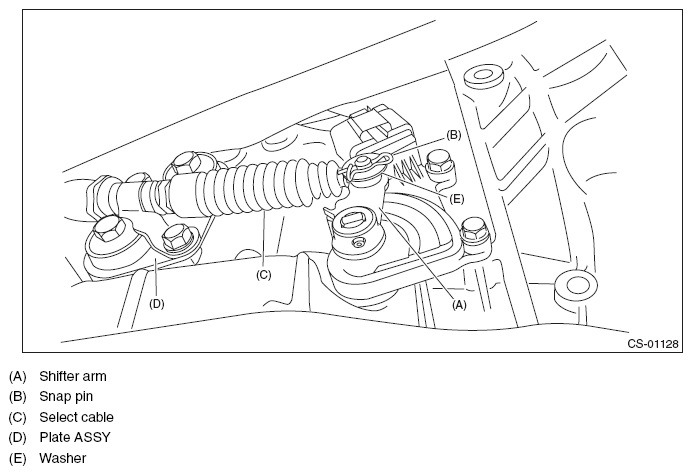

    Fig 1: Identifying Snap Pin, Washer And Select Cable
    G10268141Courtesy of SUBARU OF AMERICA, INC.
  5. Using the ST, remove the spring pin and shifter arm.

    ST 398791600 REMOVER

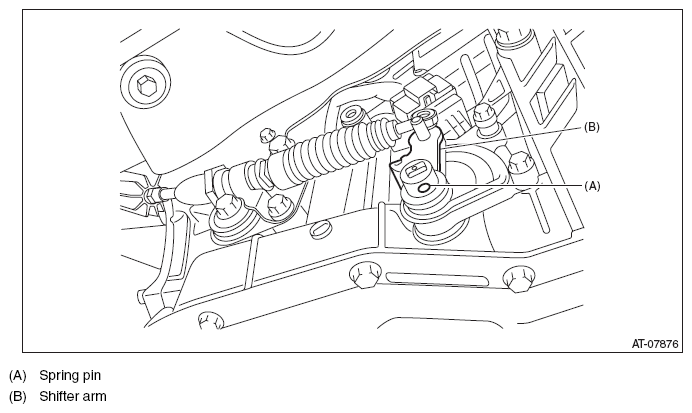

    Fig 2: Removing Spring Pin And Shifter Arm Using Remover (ST 398791600)
    G10268142Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the inhibitor harness connector from inhibitor switch.
  7. Remove the two inhibitor switch securing bolts.

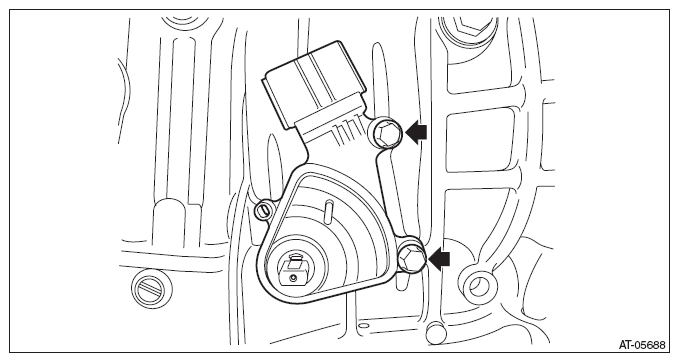

    Fig 3: Locating Inhibitor Switch Bolts
    G10268143Courtesy of SUBARU OF AMERICA, INC.
  8. Remove the inhibitor switch.
