Hill Hold Switch: Inspection

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Measure the resistance between connector terminals.

Preparation tool:

Circuit tester

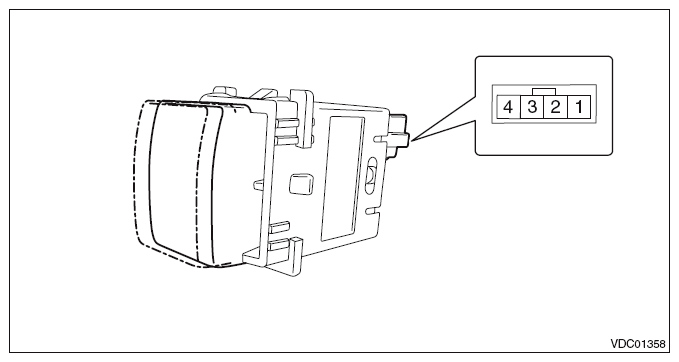

Fig 1: Hill Hold Switch Connector Terminal Identification

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Standard
1 - 4	Switch OFF	1 MΩ or more
1 - 4	Switch ON	Less than 1 Ω

Apply battery voltage between the connector terminals to check lighting condition of illumination inside the switch.

Terminal No.	Inspection conditions	Specification
2 (+) - 3 (-)	Apply battery voltage.	Light ON

Replace the hill hold switch if the inspection result is not within the standard value.
