Sedan Model

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
  2. Remove the trim panel assembly - rear shelf. <Ref. to REMOVAL , Rear Shelf Trim.>
  3. Remove the woofer assembly.
    1. Remove the bolt.
    2. Disconnect the connector and remove the woofer assembly.

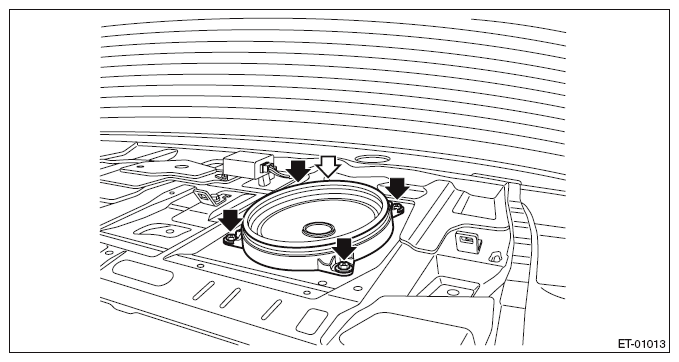

      Fig 1: Locating Woofer Assembly Bolts (Sedan Model)
      G10272647Courtesy of SUBARU OF AMERICA, INC.
