Relay and Fuse: Location
WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

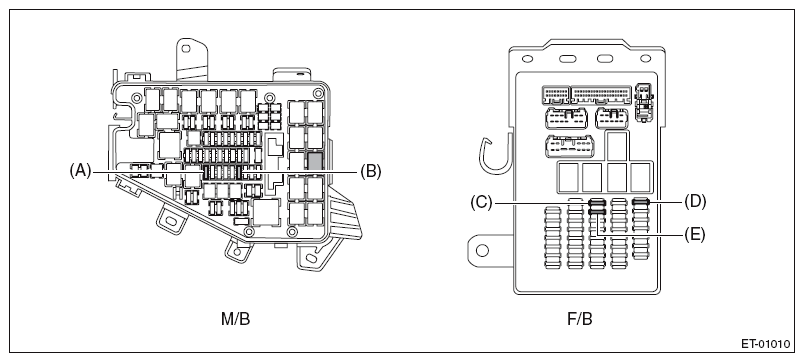

| Main fuse box (M/B) | Fuse 30 A (audio, navigation unit) | (A) |
| Fuse 20 A (audio amplifier) | (B) | |
| Fuse & relay box (F/B) | Fuse 20 A (rear accessory power supply socket) | (C) |
| Fuse 15 A (audio, navigation unit, audio amplifier, external connection terminal) | (D) | |
| Fuse 10 A (front accessory power supply socket) | (E) |
NOTE:
For other related fuses, refer to the wiring diagram. <Ref. to
SYSTEM WIRING DIAGRAMS
- Legacy or SYSTEM WIRING DIAGRAMS
- Outback, Power Supply Circuit.>
