Power Amplifier: Removal

WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Remove the power amplifier assembly after sliding the passenger's seat back and forth as necessary.

Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
Remove the power amplifier - assembly.
1. Remove the harness clip, and disconnect each connector.
2. Remove the nut and remove the power amplifier - assembly.

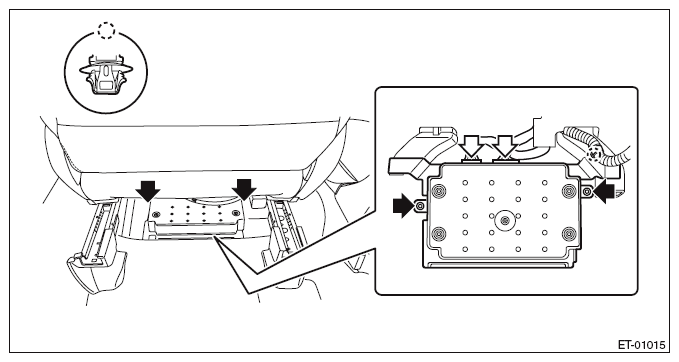

  Fig 1: Removing Power Amplifier - Assembly
  Courtesy of SUBARU OF AMERICA, INC.
