Vanity Mirror Light: Removal
WARNING: This page is about a different car, the 2015 Subaru Outback and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- The vanity mirror light is integrated into the sun visor assembly. Replace the sun visor assembly if faulty. <Ref. to REMOVAL , Sun Visor.>
- Do not remove the sun visor assembly if removing the bulb only.
- Disconnect the ground terminal from battery sensor. <Ref. to BATTERY , NOTE, Repair Contents.>
- Remove the sun visor assembly. <Ref. to REMOVAL , Sun Visor.>

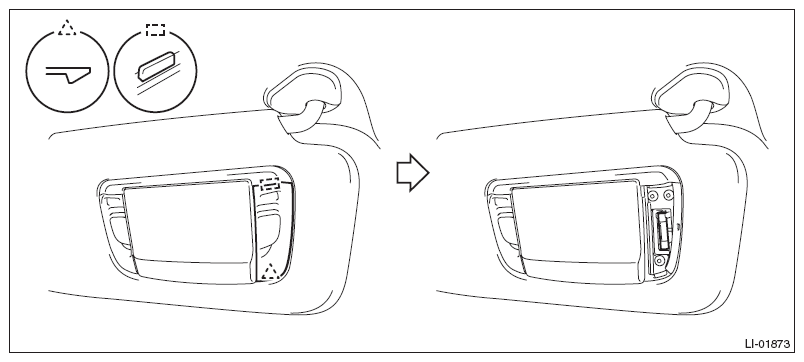

- Release the claws and remove the lens and vanity mirror light bulb.CAUTION:
- Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
- When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.
