Front Fog Light Assembly: Removal

WARNING: This page is about a different car, the 2013 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground cable from battery.
Remove the screw and clips, and turn over the mud guard.

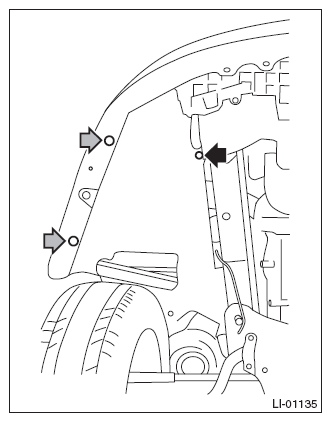

Fig 1: Locating Mud Guard Screws
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the bulb connector.
Remove the bolts, then remove the fog light assembly.

Fig 2: Locating Fog Light Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Remove the bracket as required.

Fig 3: Identifying Front Fog Light
Courtesy of SUBARU OF AMERICA, INC.
