Instrument Panel

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of SUBARU OF AMERICA, INC.

Courtesy of SUBARU OF AMERICA, INC.

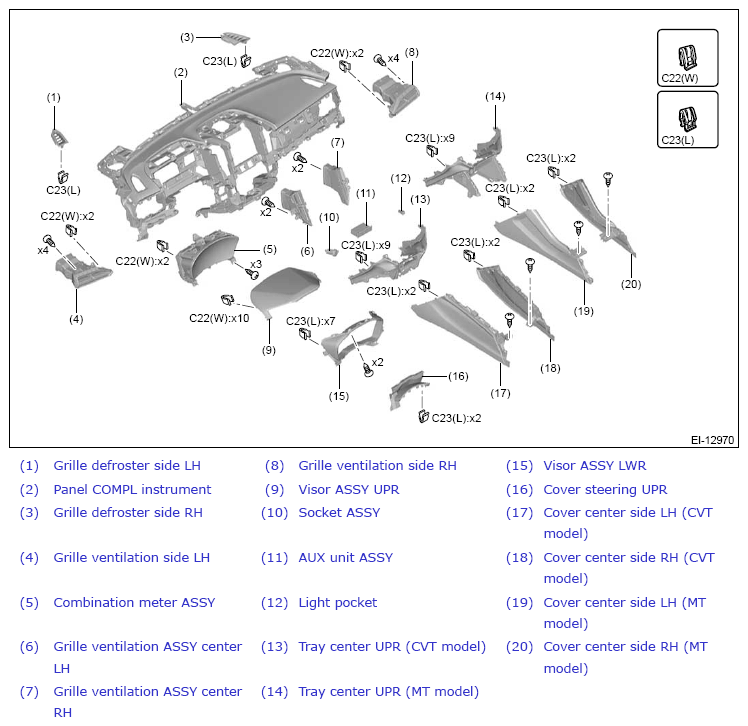

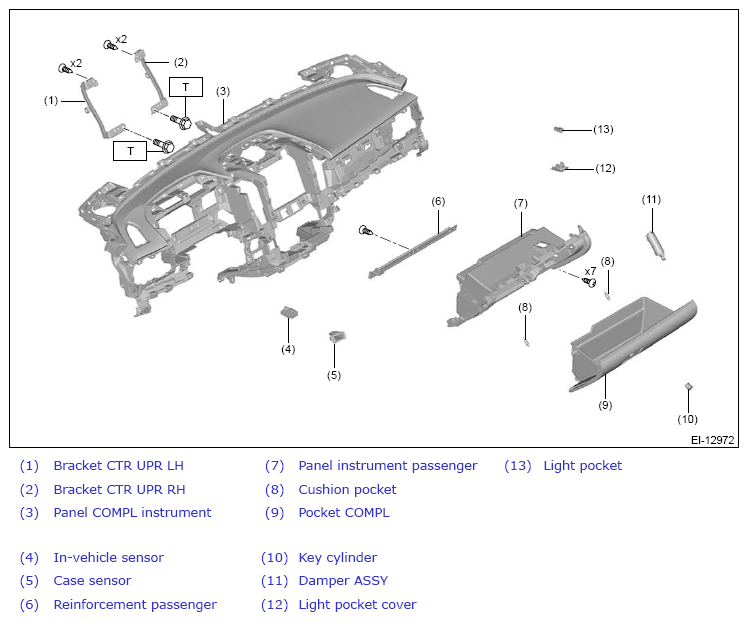

Fig 1: Instrument Panel Components (With Torque Specification) (1 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)

NOTE:

For the components of the center information display assembly, refer to "Center Information Display Assembly" in "ENTERTAINMENT & MONITORING". Ref. to ENTERTAINMENT & MONITORING>GENERAL DESCRIPTION>COMPONENT>CENTER INFORMATION DISPLAY ASSEMBLY

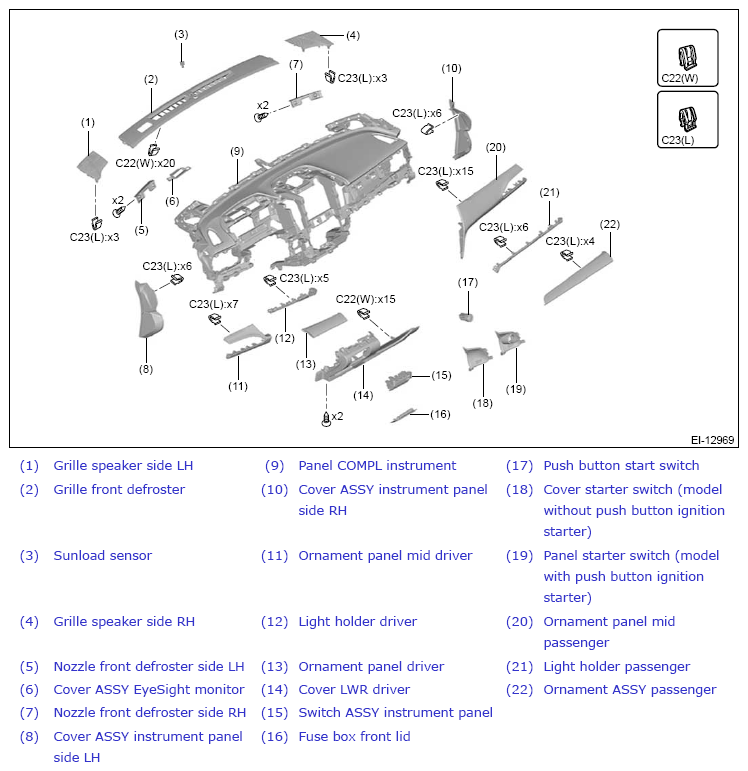

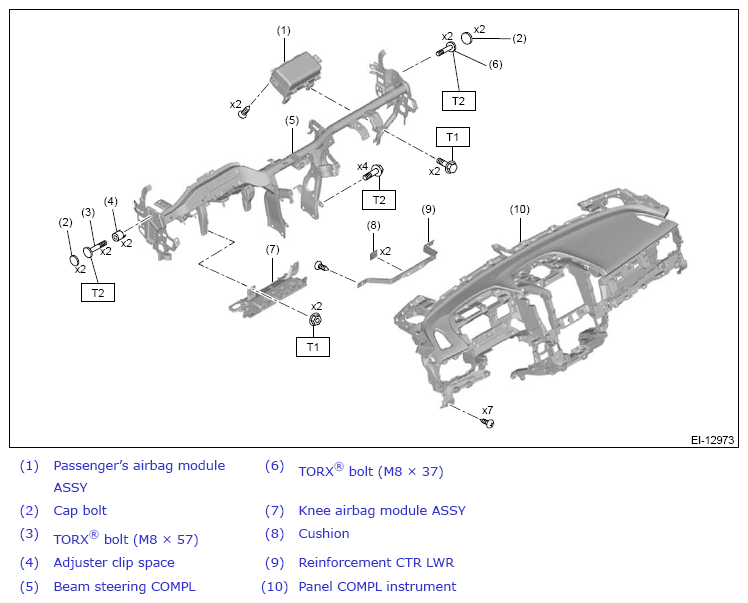

Fig 2: Instrument Panel Components (With Torque Specification) (2 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)

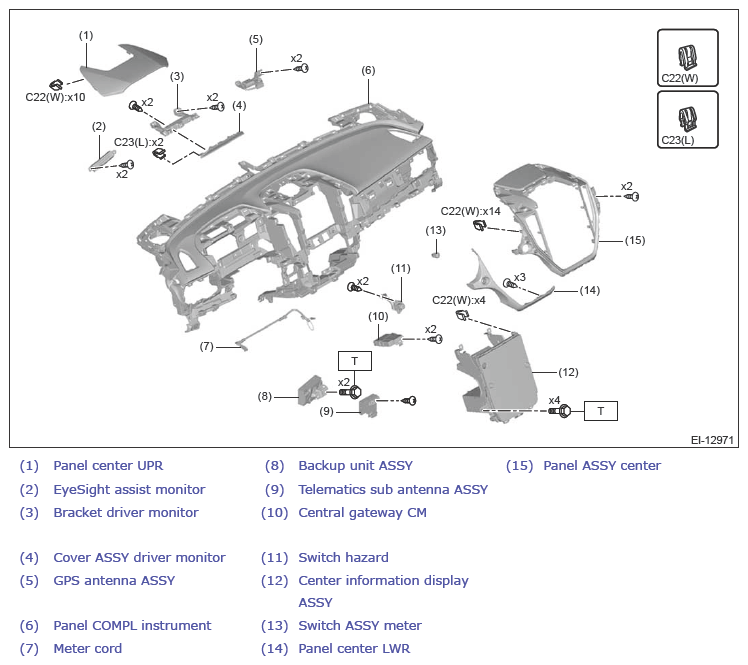

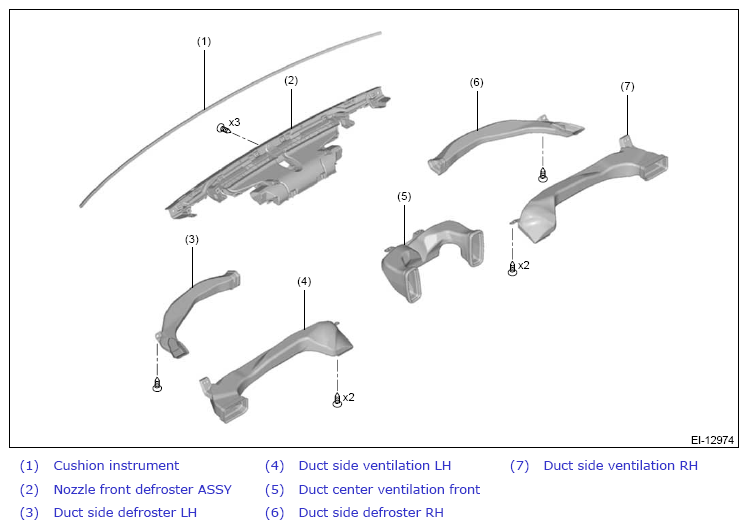

Fig 3: Instrument Panel Components (With Torque Specification) (3 Of 3)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 25 (2.5, 18.4)

Courtesy of SUBARU OF AMERICA, INC.
