Water Pipe RH

WARNING: This page is about a different car, the 2022 Subaru WRX. However, it is still accessible from the selected car via links, so may be relevant.

Install the water pipe RH and the water hose as an assembly.
Install the bolts securing the water pipe RH.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

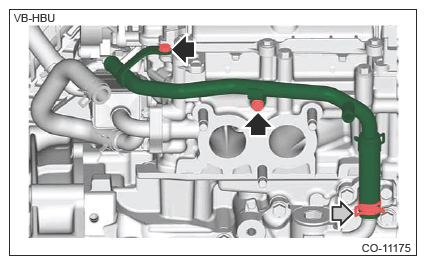

- CVT model
Courtesy of SUBARU OF AMERICA, INC.

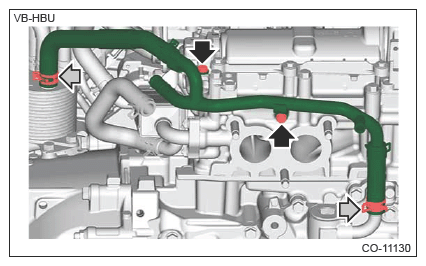

- MT model
Courtesy of SUBARU OF AMERICA, INC.
Connect the water hose to the water pipe RH.

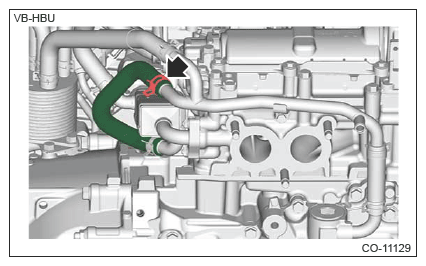

- CVT model
Courtesy of SUBARU OF AMERICA, INC.

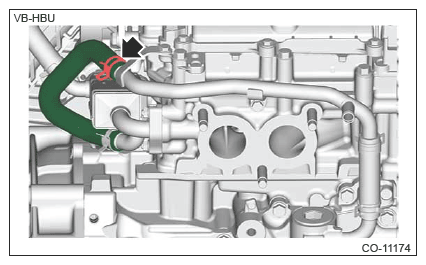

- MT model
Courtesy of SUBARU OF AMERICA, INC.
Install the crossmember support rear RH. Ref. to FRONT SUSPENSION>CROSSMEMBER SUPPORT>INSTALLATION .
Install the front exhaust pipe. Ref. to EXHAUST (H4DOTC)>FRONT EXHAUST PIPE>INSTALLATION .
Connect the ground terminal to battery sensor. Ref. to REPAIR CONTENTS>NOTE>BATTERY .
Fill engine coolant. Ref. to COOLING (H4DOTC)>ENGINE COOLANT>REPLACEMENT>FILLING OF ENGINE COOLANT .
