Oil Pressure Switch: Removal

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If the engine oil is spilt over exhaust pipe or the under cover, wipe it off with cloth to avoid emission of smoke or causing a fire.
  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the under cover. < Ref. to REMOVAL , Front Under Cover. >
  3. Drain the engine oil. < Ref. to REPLACEMENT , Engine Oil. >
  4. Disconnect the terminal from oil pressure switch.

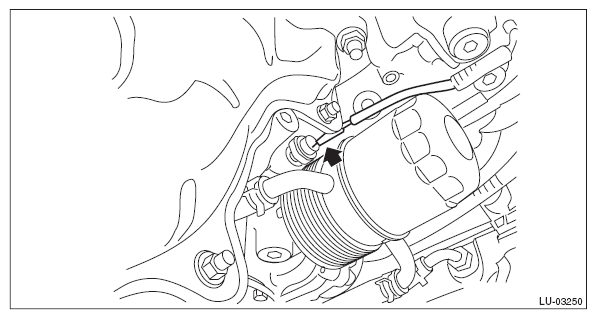

    Fig 1: Locating Oil Pressure Switch Terminal
    G10264240Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the oil pressure switch.

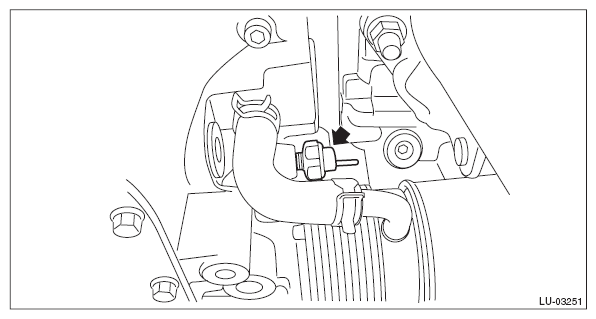

    Fig 2: Locating Oil Pressure Switch
    G10264241Courtesy of SUBARU OF AMERICA, INC.
