Oil Cooler: Installation

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the oil cooler to the oil pan upper, and fasten the oil cooler connector.

    Tightening torque:

    54 N.m (5.5 kgf-m, 39.8 ft-lb)

    NOTE: Use new O-rings.

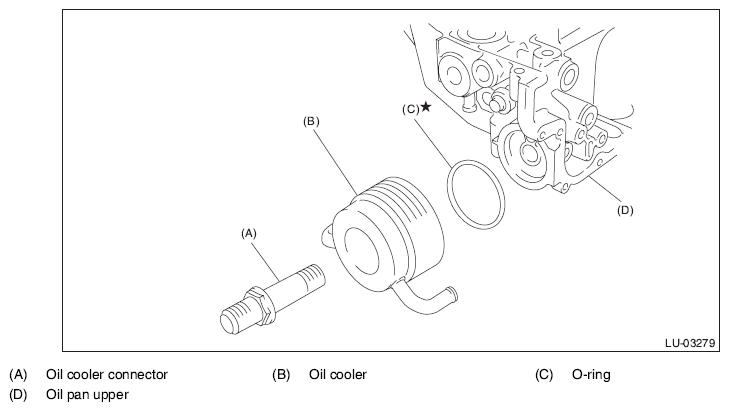

    Fig 1: Identifying Oil Cooler, Oil Cooler Connector, O-Ring And Oil Pan Upper
    G10312182Courtesy of SUBARU OF AMERICA, INC.
  2. Install the oil filter. < Ref. to INSTALLATION , Engine Oil Filter. >
  3. Install the engine oil cooler water pipe (A), water hose (B) and water hose (C), and connect the water hose (D) to the oil cooler.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

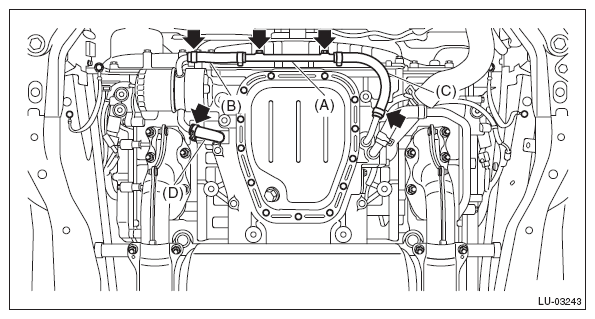

    Fig 2: Identifying Engine Oil Cooler Water Pipe And Water Hose
    G10264245Courtesy of SUBARU OF AMERICA, INC.
  4. Install the under cover. < Ref. to INSTALLATION , Front Under Cover. >
  5. Lower the vehicle.
  6. Refill the engine oil. < Ref. to REPLACEMENT , Engine Oil. >
  7. Fill the ATF. < Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
