How To Use Probe
WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

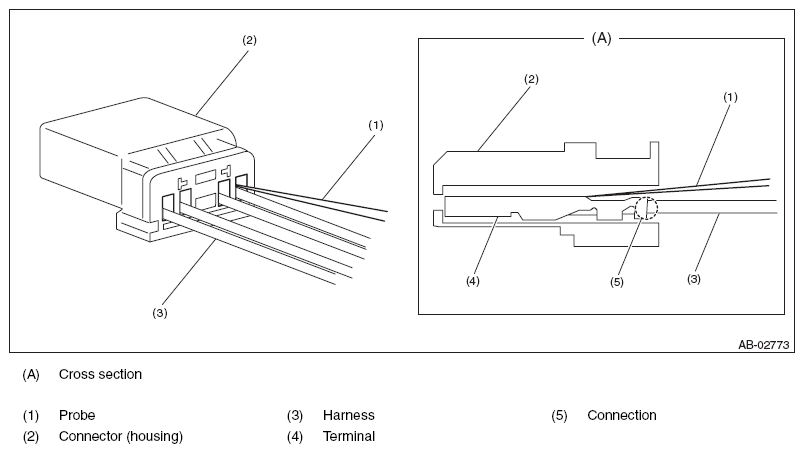

- Passenger's airbag module
Insert the probe into the harness hole, and contact it with the terminal.
Courtesy of SUBARU OF AMERICA, INC.
CAUTION:- Do not insert the probe forcibly.
- Be careful not to contact it to the connection (5) between the terminal and harness. (Harness will come off easily from connector if doing so.)

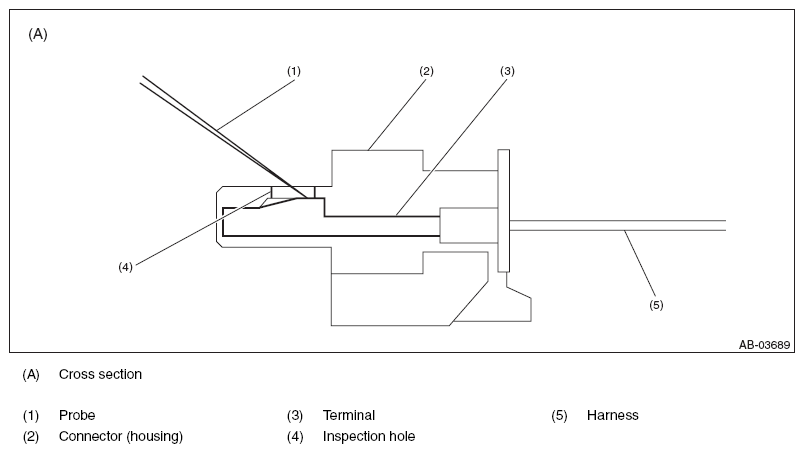

- Front door impact sensor
Insert the probe into the inspection hole to contact with the terminal.
Courtesy of SUBARU OF AMERICA, INC.
CAUTION:- Do not push the probe with excessive force against the terminal. (Terminal will come off easily from housing if doing so.)
- Do not insert the probe anywhere other than inspection hole. (Waterproof property will be lost if doing so.)
