Airbag Warning Light Illumination Pattern: Inspection

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Turn the ignition switch to ON, and confirm that the airbag warning light remains on for approx. 6 seconds then turns off afterwards.

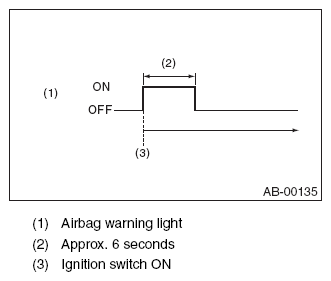

Fig 1: Airbag Warning Light Illumination Pattern
G10311759Courtesy of SUBARU OF AMERICA, INC.
