Differential Gear Oil: Replacement

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Gear oil is extremely hot just after driving. Be wary of receiving burns.
Be careful not to spill the differential gear oil on exhaust pipe. If gear oil is spilled, wipe it off completely.

Lift up the vehicle.
Remove the drain plug and filler plug, and drain the gear oil.
- T-type

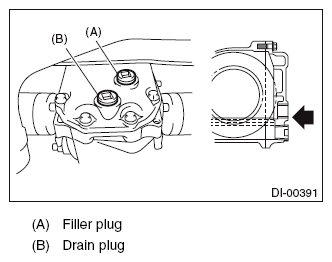

  Fig 1: Identifying Drain Plug And Filler Plug (T-Type)
  Courtesy of SUBARU OF AMERICA, INC.
- VA1-type

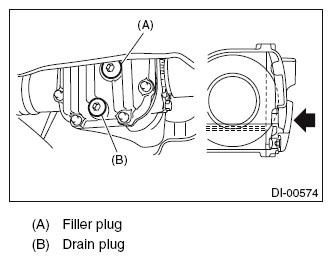

  Fig 2: Identifying Drain Plug And Filler Plug (VA1-Type)
  Courtesy of SUBARU OF AMERICA, INC.
- VA2-type

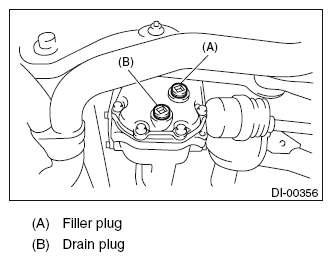

  Fig 3: Identifying Drain Plug And Filler Plug (VA2-Type)
  Courtesy of SUBARU OF AMERICA, INC.
Tighten the drain plug.
NOTE:
- For the T-type, degrease the thread portion sufficiently and apply liquid gasket to the drain plug.
  Liquid gasket:

  THREE BOND 1105 (Part No. 004403010) or equivalent
- For VA type, use a new gasket.
  Tightening torque:

  T-type

  49 N.m (5.0 kgf-m, 36.1 ft-lb)

  VA-type:

  50 N.m (5.1 kgf-m, 36.9 ft-lb)
Fill the differential carrier with gear oil to the bottom of filler plug.
NOTE: Carefully refill gear oil while watching the level. Excessive or insufficient oil must be avoided.

Recommended gear oil:

< Ref. to SPECIFICATION , General Description. >

Oil capacity:

0.8 L (0.8 US qt, 0.7 Imp qt)
- T-type

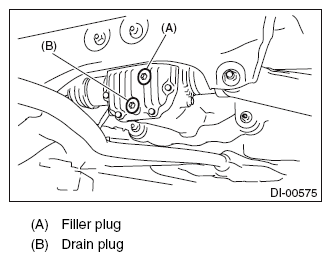

  Fig 4: Identifying Drain Plug And Filler Plug (T-Type)
  Courtesy of SUBARU OF AMERICA, INC.
- VA1-type

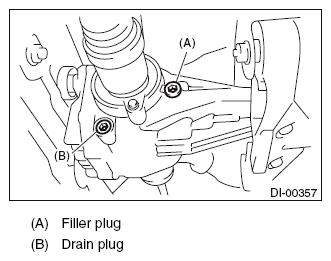

  Fig 5: Identifying Drain Plug And Filler Plug (VA1-Type)
  Courtesy of SUBARU OF AMERICA, INC.
- VA2-type

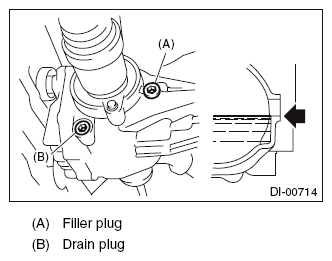

  Fig 6: Identifying Drain Plug And Filler Plug (VA2-Type)
  Courtesy of SUBARU OF AMERICA, INC.
Install the filler plug.
NOTE:
- For the T-type, degrease the thread portion sufficiently and apply liquid gasket to the filler plug.
  Liquid gasket:

  THREE BOND 1105 (Part No. 004403010) or equivalent
- For VA type, use a new gasket.
  Tightening torque:

  T-type:

  49 N.m (5.0 kgf-m, 36.1 ft-lb)

  VA-type:

  50 N.m (5.1 kgf-m, 36.9 ft-lb)
