Relay and Fuse: Location

WARNING: This page is about a different car, the 2016 Subaru Outback, 2016 Subaru Legacy, 2015 Subaru Outback, and 2015 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

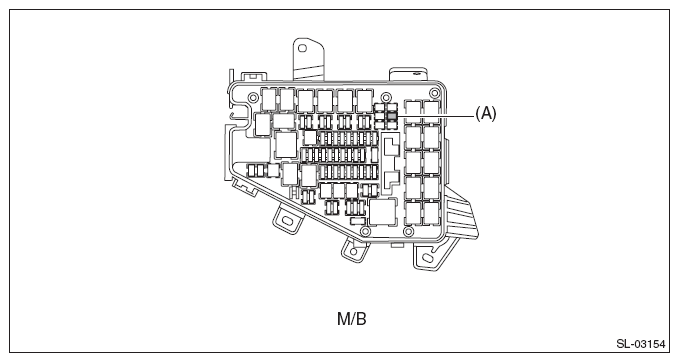

Fig 1: Identifying Power Rear Gate Main Fuse Box

Courtesy of SUBARU OF AMERICA, INC.

Main fuse box (M/B)

Fuse 30 A (power rear gate control module)

(A)

NOTE: For other related fuses, refer to the wiring diagram. < Ref. to POWER DISTRIBUTION (Legacy), POWER DISTRIBUTION (Outback) Power Supply Circuit. >
