Brake Pedal

WARNING: This page is about a different car, the 2013 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

6MT model

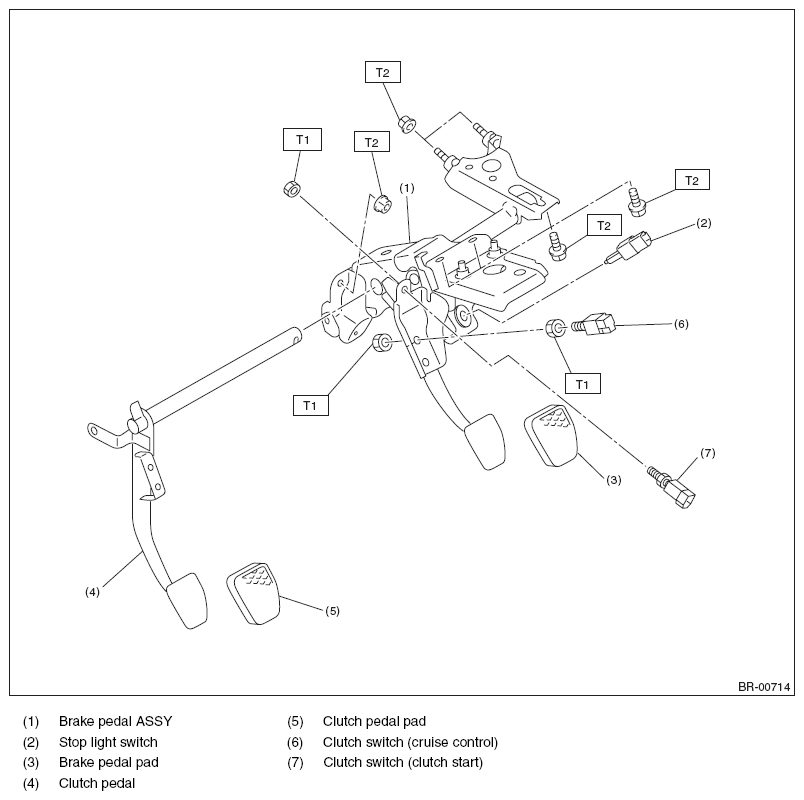

Fig 1: Identifying Brake Pedal And Related Components (6MT Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.82, 5.9)

T2: 18 (1.84, 13.3)

5MT model

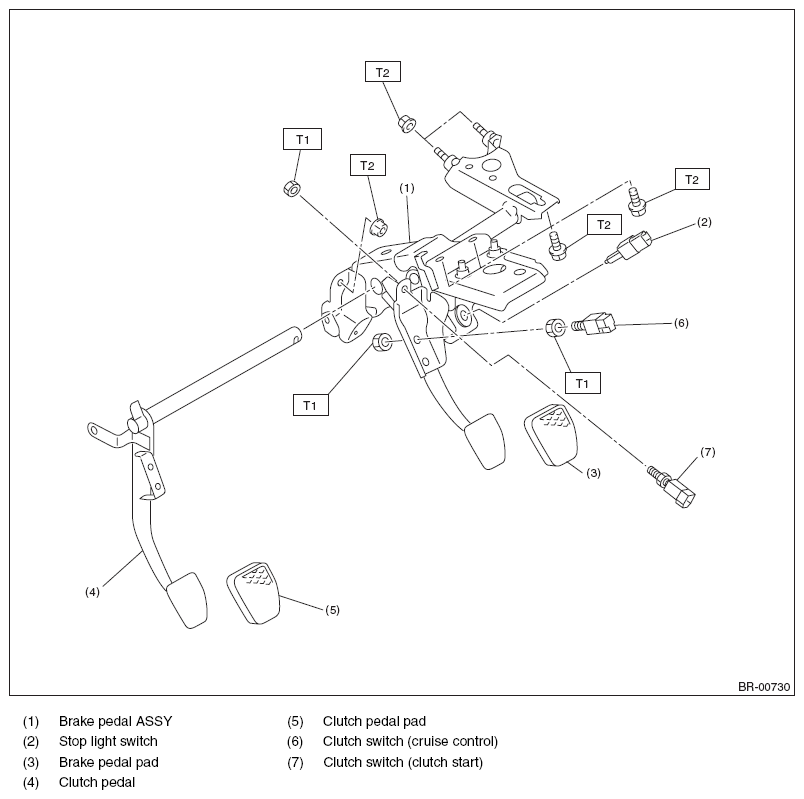

Fig 2: Identifying Brake Pedal And Related Components (5MT Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 8 (0.82, 5.8)

T2: 18 (1.84, 13.3)
