Transmission Control Device: Installation

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the detent spring to the transmission case.

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.2 ft-lb)

    Fig 1: Locating Detent Spring Bolt
    G06654618Courtesy of SUBARU OF AMERICA, INC.
  2. Install the manual plate, parking rod, range select lever and bolt.

    Tightening torque:

    7 N.m (0.7 kgf-m, 5.2 ft-lb)

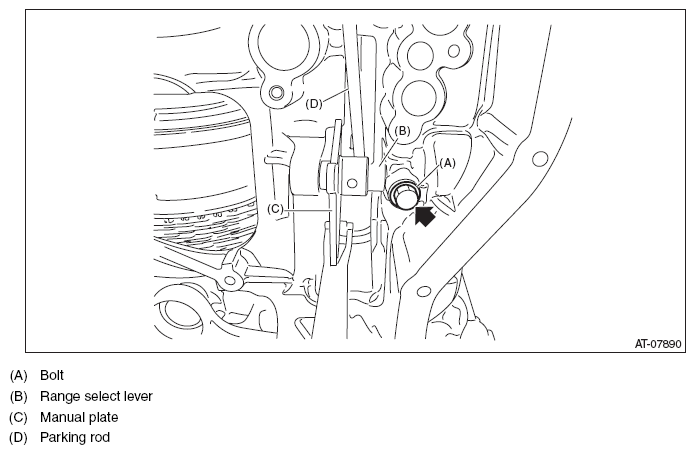

    Fig 2: Identifying Manual Plate, Parking Rod, Range Select Lever And Bolt
    G10313821Courtesy of SUBARU OF AMERICA, INC.
  3. Install the spring pin.
    NOTE: Use new spring pin.
    Fig 3: Locating Transmission Spring Pin
    G06654616Courtesy of SUBARU OF AMERICA, INC.
  4. Install the inhibitor switch. < Ref. to INHIBITOR SWITCH . >
  5. Adjust the inhibitor switch. < Ref. to INHIBITOR SWITCH . >
  6. Install the control valve body and oil pan. < Ref. to INSTALLATION , Control Valve Body. >
  7. Install the transmission assembly to the vehicle. < Ref. to INSTALLATION , Automatic Transmission Assembly. >
