Electrical Specification
WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

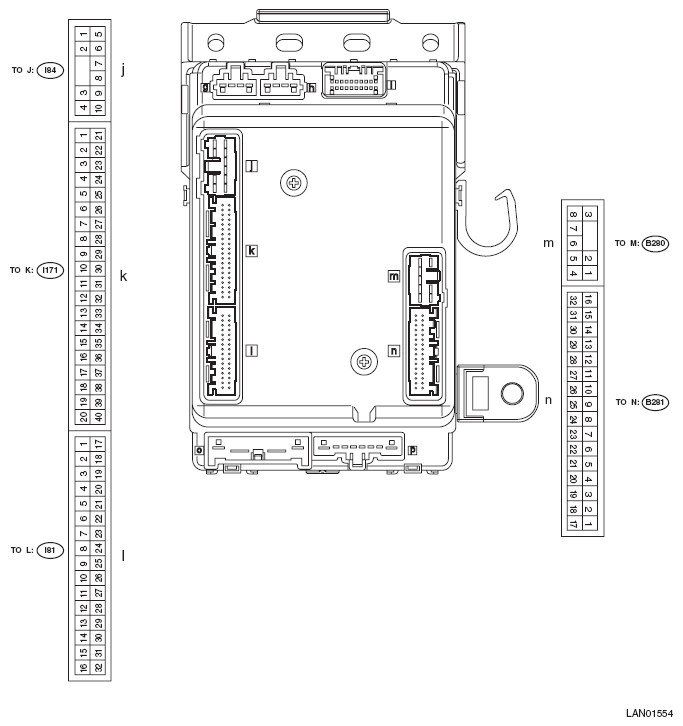

| Terminal No. | Content | Measuring condition | Standard |
|---|---|---|---|
| (i84) No. 1 ←→ Chassis ground | Turn output (left rear side) | Left turn signal OFF → ON | Less than 1 V → 9 - 16 V |
| (i84) No. 2 | - | - | - |
| (i84) No. 3 ←→ Chassis ground | Shift lock solenoid output (CVT model) |
|
9 - 16 V |
|
Less than 1 V | ||
| (i84) No. 4 ←→ Chassis ground | GND | Always | Less than 1 Ω |
| (i84) No. 5 ←→ Chassis ground | Turn output (right rear side) | Right turn signal OFF → ON | Less than 1 V → 9 - 16 V |
| (i84) No. 6 ←→ Chassis ground | Door lock (driver's seat unlock) | When UNLOCK signal is output | Less than 1 V → 9 - 16 V |
| (i84) No. 7 | - | - | - |
| (i84) No. 8 ←→ Chassis ground | Luggage/trunk light output | Luggage/trunk light OFF → ON | Less than 1 V → 9 - 16 V |
| (i84) No. 9 ←→ Chassis ground | Room light output | Room light OFF → ON | Less than 1 V → 9 - 16 V |
| (i84) No. 10 ←→ Chassis ground | ACC (model with keyless access with push button start system) | ACC OFF → ON | Less than 1 V → 9 - 16 V |
| Key-in switch (model without keyless access with push button start system) | Ignition key not inserted → inserted | Less than 1 V → 9 - 16 V | |
| (i171) No. 1 | - | - | - |
| (i171) No. 2 | Main system CAN (L) | - | Communication line |
| (i171) No. 3 ←→ (i171) No. 4 | Immobilizer antenna (B) | When ignition key inserted | Pulse generation |
| (i171) No. 4 ←→ Chassis ground | Immobilizer antenna amplifier GND | Always | Less than 1 Ω |
| (i171) No. 5 | - | - | - |
| (i171) No. 6 ←→ Chassis ground | Opener switch (rear gate/trunk) | Rear gate/trunk opener switch ON | 9 - 16 V → less than 1 V |
| (i171) No. 7 ←→ (i171) No. 8 | - | - | - |
| (i171) No. 8 ←→ Chassis ground | Illumination sensor GND | Always | Less than 1 Ω |
| (i171) No. 9 ←→ Chassis ground | Key ring illumination (LED drive) | Key ring OFF → ON | Less than 1 V → 9 - 16 V |
| (i171) No. 10 ←→ Chassis ground | Map light output | Map light OFF → ON | Less than 1 V → 9 - 16 V |
| (i171) No. 11 | - | - | - |
| (i171) No. 12 ←→ Chassis ground | Manual switch (unlock) | Door unlock switch OFF → ON | 9 - 16 V → less than 1 V |
| (i171) No. 13 ←→ Chassis ground | Door switch (passenger's seat) | Passenger's door closed → open | 9 - 16 V → less than 1 V |
| (i171) No. 14 ←→ Chassis ground | Door switch (rear seat LH) | Rear seat LH door closed → open | 9 - 16 V → less than 1 V |
| (i171) No. 15 ←→ Chassis ground | Door switch (rear gate/trunk) | Rear gate/trunk closed → open | 9 - 16 V → less than 1 V |
| (i171) No. 16 ←→ Chassis ground | Dimmer Hi switch | Dimmer switch Hi beam OFF → ON | 9 - 16 V → less than 1 V |
| (i171) No. 17 | - | - | - |
| (i171) No. 18 ←→ Chassis ground | Turn signal right | Left turn signal OFF → ON | Less than 1 V → 9 - 16 V |
| (i171) No. 19 ←→ Chassis ground | Lighting II switch (redundant circuit) | Lighting switch 2 OFF → ON | 9 - 16 V → less than 1 V |
| (i171) No. 20 ←→ Chassis ground | Lighting Lo relay output (redundant circuit) | Lighting switch 2 OFF → ON | 9 - 16 V → less than 1 V |
| (i171) No. 21 ←→ Chassis ground | Power supply for lighting relay (redundant circuit) | ACC OFF → ON (with keyless access with push button start system), or ignition key not inserted → inserted (without keyless access with push button start system) | Less than 1 V → 9 - 16 V |
| (i171) No. 22 | Main system CAN (H) | - | Communication line |
| (i171) No. 23 ←→ (i171) No. 4 | Immobilizer antenna (A) | When ignition key inserted | Pulse generation |
| (i171) No. 24 ←→ (i171) No. 4 | Immobilizer antenna amplifier power supply | Ignition switch ON | 4.5 V - 5.5 V |
| (i171) No. 25 ←→ Chassis ground | P range switch | AT shift lever, other than P range → P range | 9 - 16 V → less than 1 V |
| (i171) No. 26 ←→ Chassis ground | Security light | When security light is illuminating | Pulse generation |
| (i171) No. 27 ←→ (i171) No. 8 | Illumination sensor power supply | Ignition switch OFF → ON | Less than 1 V → 5 V |
| (i171) No. 28 ←→ (i171) No. 8 | Illumination sensor signal | When lighting switch is at AUTO | 0 - 5 V |
| (i171) No. 29 ←→ Chassis ground | Pull cup illumination output |
|
Less than 1 V → 9 - 16 V |
| (i171) No. 30 | - | - | - |
| (i171) No. 31 | - | - | - |
| (i171) No. 32 ←→ Chassis ground | Manual switch (lock) | Door lock switch OFF → ON | 9 - 16 V → less than 1 V |
| (i171) No. 33 ←→ Chassis ground | Door switch (driver's seat) | Driver's door closed → open | 9 - 16 V → less than 1 V |
| (i171) No. 34 ←→ Chassis ground | Door switch (rear seat RH) | Rear seat RH door closed → open | 9 - 16 V → less than 1 V |
| (i171) No. 35 ←→ Chassis ground | Lighting I switch | Lighting switch 1 OFF → ON | 9 - 16 V → less than 1 V |
| (i171) No. 36 ←→ Chassis ground | Dimmer Pass switch | Dimmer switch Pass OFF → ON | 9 - 16 V → less than 1 V |
| (i171) No. 37 ←→ Chassis ground | Turn hazard switch | Turn hazard switch OFF → ON | 9 - 16 V → less than 1 V |
| (i171) No. 38 ←→ Chassis ground | Turn signal left | Turn signal switch left OFF → ON | 9 - 16 V → less than 1 V |
| (i171) No. 39 | - | - | - |
| (i171) No. 40 | - | - | - |
| (i81) No. 1 ←→ Chassis ground | Rear washer switch | Rear washer switch OFF → ON | 9 - 16 V → less than 1 V |
| (i81) No. 2 ←→ Chassis ground | Lighting II switch (control) | Lighting switch 2 OFF → ON | 9 - 16 V → less than 1 V |
| (i81) No. 3 ←→ Chassis ground | Rear wiper switch (INT) | Rear wiper switch INT OFF → ON | 9 - 16 V → less than 1 V |
| (i81) No. 4 | - | - | - |
| (i81) No. 5 | - | - | - |
| (i81) No. 6 ←→ Chassis ground | Door lock status switch passenger's seat | Passenger's door lock → unlock | 9 - 16 V → less than 1 V |
| (i81) No. 7 | - | - | - |
| (i81) No. 8 | - | - | - |
| (i81) No. 9 ←→ Chassis ground | Towing switch | Towing switch OFF → ON | 9 - 16 V → less than 1 V |
| (i81) No. 10 | Keyless UART | - | Communication line |
| (i81) No. 11 | - | - | - |
| (i81) No. 12 | Front washer switch | Front washer switch OFF → ON | 9 - 16 V → less than 1 V |
| (i81) No. 13 | - | - | - |
| (i81) No. 14 | - | - | - |
| (i81) No. 15 ←→ Chassis ground | LANE OFF switch | Lane departure warning OFF switch, OFF → ON (when pressed) | 9 - 16 V → less than 1 V |
| (i81) No. 16 | - | - | - |
| (i81) No. 17 ←→ Chassis ground | Front fog light switch | Front fog light switch OFF → ON | 9 - 16 V → less than 1 V |
| (i81) No. 18 | LIN | - | Communication line |
| (i81) No. 19 ←→ Chassis ground | Rear wiper switch (ON) | Rear wiper switch OFF → ON | 9 - 16 V → less than 1 V |
| (i81) No. 20 ←→ Chassis ground | Lighting AUTO switch | Lighting switch AUTO OFF → ON | 9 - 16 V → less than 1 V |
| (i81) No. 21 | - | - | - |
| (i81) No. 22 ←→ Chassis ground | Door lock status switch driver's seat | Driver's door unlock → lock | 9 - 16 V → less than 1 V |
| (i81) No. 23 ←→ Chassis ground | Impact sensor | Impact sensor, impact not applied → impact applied | Less than 1 V → 9 - 16 V |
| (i81) No. 24 | - | - | - |
| (i81) No. 25 | - | - | - |
| (i81) No. 26 | - | - | - |
| (i81) No. 27 | - | - | - |
| (i81) No. 28 | - | - | - |
| (i81) No. 29 | - | - | - |
| (i81) No. 30 ←→ Chassis ground | P-CR OFF switch | Pre-collision brake OFF switch, OFF → ON (when pressed) | 9 - 16 V → less than 1 V |
| (i81) No. 31 | - | - | - |
| (i81) No. 32 | - | - | - |
| (B280) No. 1 ←→ Chassis ground | Front wiper RTN | Front wiper stop position → in operation | Less than 1 V → 9 - 16 V |
| (B280) No. 2 ←→ Chassis ground | GND | Always | Less than 1 Ω |
| (B280) No. 3 ←→ Chassis ground | Turn output (left front) | Left front turn signal OFF → ON | Less than 1 V → 9 - 16 V |
| (B280) No. 4 ←→ Chassis ground | BAT (shift lock, key lock, turn) | Always | 9 - 16 V |
| (B280) No. 5 ←→ Chassis ground | Key lock solenoid (CVT model without keyless access with push button start system) |
|
Less than 1 V → 9 - 16 V |
| (B280) No. 6 | - | - | - |
| (B280) No. 7 ←→ Chassis ground | BAT (control) | Always | 9 - 16 V |
| (B280) No. 8 ←→ Chassis ground | Turn output (right front) | Right front turn signal OFF → ON | Less than 1 V → 9 - 16 V |
| (B281) No. 1 | - | - | - |
| (B281) No. 2 | - | - | - |
| (B281) No. 3 ←→ Chassis ground | Lighting Hi relay output (left) | Dimmer switch Pass OFF → ON | Less than 1 V → 9 - 16 V |
| (B281) No. 4 | - | - | - |
| (B281) No. 5 ←→ Chassis ground | - | - | - |
| (B281) No. 6 ←→ Chassis ground | DRL cancel | During DRL on, dimmer switch Pass OFF → ON | 9 - 16 V → less than 1 V |
| (B281) No. 7 ←→ Chassis ground | Lighting 1 relay output | Lighting switch 1 OFF → ON | 9 - 16 V → less than 1 V |
| (B281) No. 8 ←→ Chassis ground | Rear wiper RTN | Rear wiper stop position → in operation | Less than 1 V → 9 - 16 V |
| (B281) No. 9 ←→ Chassis ground | Lighting Hi relay output (right) | Dimmer switch Pass OFF → ON | Less than 1 V → 9 - 16 V |
| (B281) No. 10 ←→ Chassis ground | Answer-back buzzer | Answer-back buzzer OFF → ON | Less than 1 V → 9 - 16 V |
| (B281) No. 11 | - | - | - |
| (B281) No. 12 ←→ Chassis ground | Stop light switch | Brake pedal, not depressed → depressed | Less than 1 V → 9 - 16 V |
| (B281) No. 13 ←→ Chassis ground | MT reverse switch | MT shift lever, other than reverse → reverse | Less than 1 V → 9 - 16 V |
| (B281) No. 14 ←→ Chassis ground | EGI immobilizer communication | Always | 1 MO or more |
| (B281) No. 15 | Body system CAN (L) | - | Communication line |
| (B281) No. 16 | - | - | - |
| (B281) No. 17 | - | - | - |
| (B281) No. 18 ←→ Chassis ground | Wiper deicer relay output | Rear window defogger switch OFF → ON | 9 - 16 V → less than 1 V |
| (B281) No. 19 | - | - | - |
| (B281) No. 20 ←→ Chassis ground | Security output horn | Security horn, not operating → operating | 9 - 16 V → less than 1 V |
| (B281) No. 21 ←→ Chassis ground | Rear defogger relay output | Rear window defogger switch OFF → ON | 9 - 16 V → less than 1 V |
| (B281) No. 22 | - | - | - |
| (B281) No. 23 ←→ Chassis ground | Lighting Lo relay output (control) | Lighting switch 2 OFF → ON | 9 - 16 V → less than 1 V |
| (B281) No. 24 ←→ Chassis ground | Rear wiper ON | Rear wiper switch, not operating → operating | Less than 1 V → 9 - 16 V |
| (B281) No. 25 ←→ Chassis ground | Front fog light output | Front fog light switch OFF → ON | 9 - 16 V → less than 1 V |
| (B281) No. 26 ←→ Chassis ground | Power supply for lighting relay (control) | ACC OFF → ON (with keyless access with push button start system), or ignition key not inserted → inserted (without keyless access with push button start system) | Less than 1 V → 9 - 16 V |
| (B281) No. 27 | - | - | - |
| (B281) No. 28 | - | - | - |
| (B281) No. 29 | - | - | - |
| (B281) No. 30 | - | - | - |
| (B281) No. 31 | Body system CAN (H) | - | Communication line |
| (B281) No. 32 ←→ Chassis ground | BAT (backup) | Always | 9 - 16 V |
