Spot Map Light: Removal

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The spot map light is a single unit with the overhead console or stereo camera cover. Replace the overhead console or stereo camera cover if faulty.
  • Do not remove the spot map light if removing the bulb only.
  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the overhead console. (Models without EyeSight)
    1. Release the clips and claws.
    2. Disconnect the connector, and remove the overhead console.

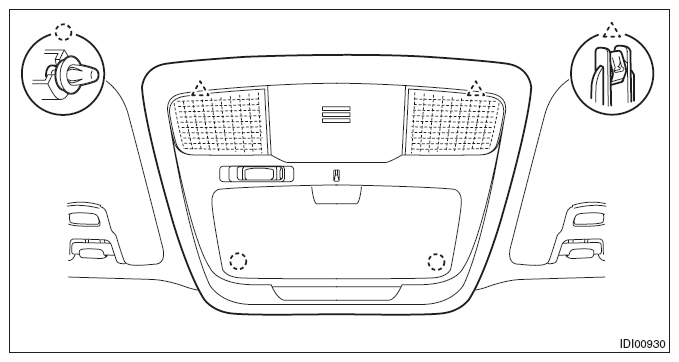

      Fig 1: Identifying Overhead Console Clips And Claws
      G10277256Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the stereo camera cover assembly. (Models with EyeSight) < Ref. to REMOVAL , Stereo Camera. >
  4. Release the claws, then detach the spot map light cover and bulb.
    CAUTION:
    • Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
    • When using a flat tip screwdriver, apply protective tape or cloth and be careful not to cause damage.
    Fig 2: Detaching Spot Map Light Cover And Bulb
    G10277257Courtesy of SUBARU OF AMERICA, INC.
