Sedan Model

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the trunk trim panel - side. < Ref. to REMOVAL , Trunk Room Trim. >
  3. Remove the light assembly - rear combination.
    1. Remove the harness clip and connector.
    2. Release the nuts and clips, then remove the light assembly - rear combination.
      CAUTION: Be careful not to damage the clips.

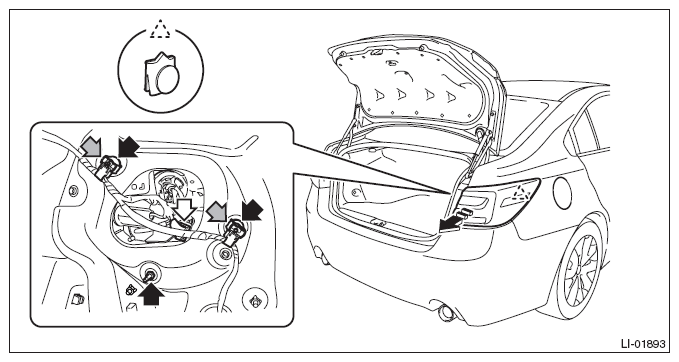

      Fig 1: Removing Rear Combination Light Assembly (Sedan Model)
      G10277234Courtesy of SUBARU OF AMERICA, INC.
