Outback Model

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the license plate light.
    1. Release the claws and pull out the license plate light.
    2. Disconnect the connector, and remove the license plate light.

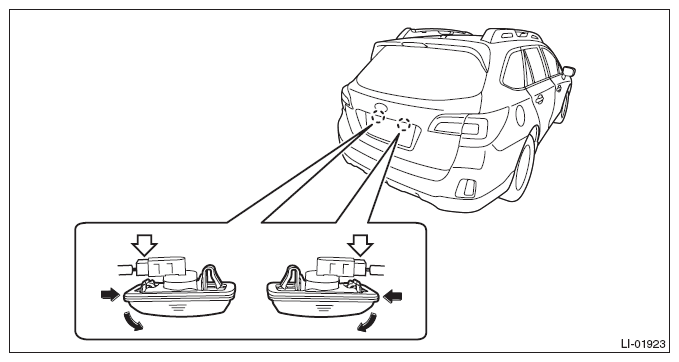

      Fig 1: Removing License Plate Light (Outback Model)
      G10277250Courtesy of SUBARU OF AMERICA, INC.
  3. Rotate the bulb socket in the direction of arrow shown in the figure to remove the license plate light bulb.
    CAUTION: Use a dry clean cloth so that no grease or water adheres to the glass portion of the bulb.
    Fig 2: Rotating Bulb Socket (Outback Model)
    G10270721Courtesy of SUBARU OF AMERICA, INC.
