Outback Model

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the trim panel - rear gate. < Ref. to REMOVAL , Rear Gate Trim. >
  3. Remove the roof spoiler. < Ref. to REMOVAL , Roof Spoiler. >
  4. Remove the nuts and remove the light assembly - high-mounted.

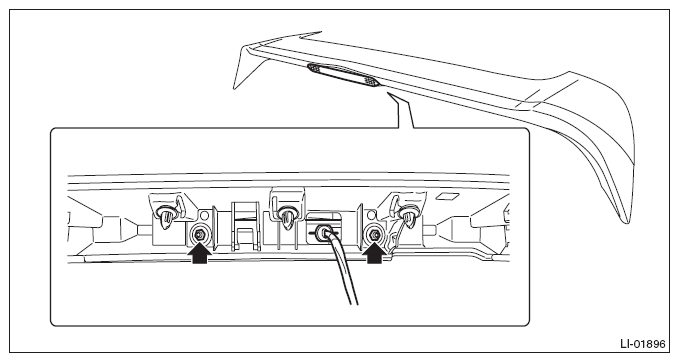

    Fig 1: Locating High-Mounted Light Assembly Nuts
    G10277253Courtesy of SUBARU OF AMERICA, INC.
