Headlight Assembly: Removal

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not perform work with wet hands, because there is a possibility of electrical shock.
  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the bumper face - front. < Ref. to REMOVAL , Front Bumper. >
  3. Remove the cover - front fender.
    1. Remove the clip.
    2. Release the claws, and then remove the cover - front fender UPR.

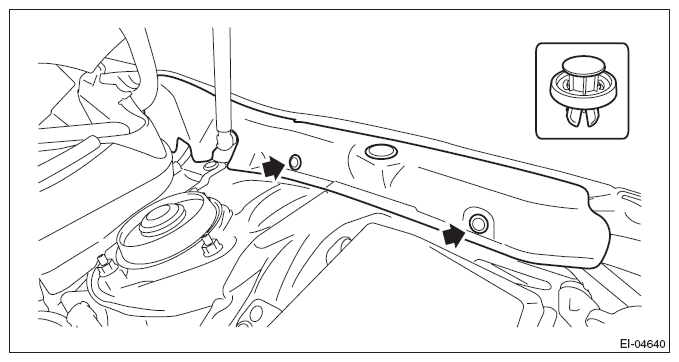

      Fig 1: Locating Front Fender UPR Cover Claws
      G10277208Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts, and then remove the bracket - front bumper corner.

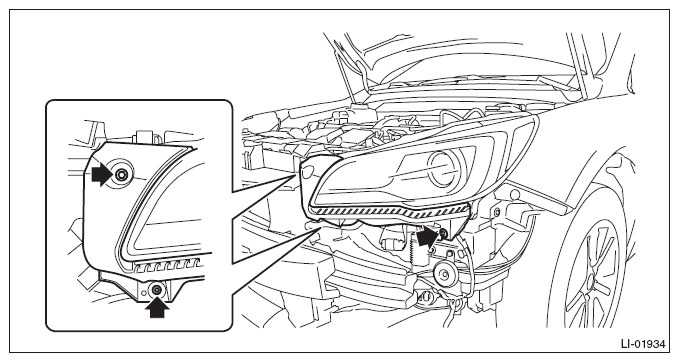

    Fig 2: Locating Front Bumper Corner Bracket Bolts
    G10277209Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the light assembly - head.
    1. Disconnect the connector.
    2. Remove the bolts and clips, and remove the light assembly - head.

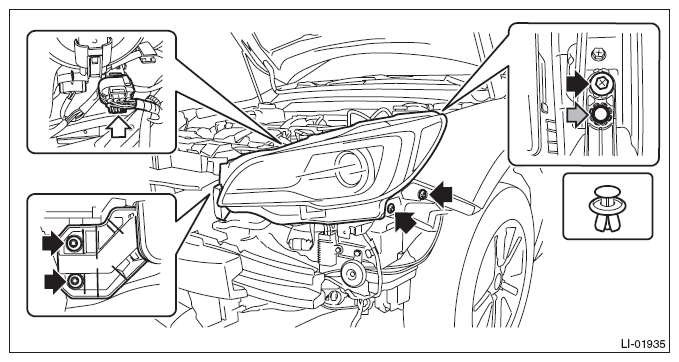

      Fig 3: Locating Head Light Assembly Connector, Bolts And Clips
      G10277210Courtesy of SUBARU OF AMERICA, INC.
