Section 144 (Starting System & Charging System (H4DO)): Starter: Removal

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
Remove the clip (A), and loosen the clamps (B) and (C) securing the air intake boot.

Fig 1: Identifying Air Intake Boot Clip And Clamps
Courtesy of SUBARU OF AMERICA, INC.
Remove the air intake boot from the air cleaner case (rear) and throttle body, and move it to the left side wheel apron.

Fig 2: Identifying Air Cleaner Case (Rear) And Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector (A) from the starter, and remove the terminal (B).

Fig 3: Locating Starter Terminal
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts or nuts securing the starter, and remove the starter from the transmission.
NOTE: For the MT model, a bolt is used at (a).

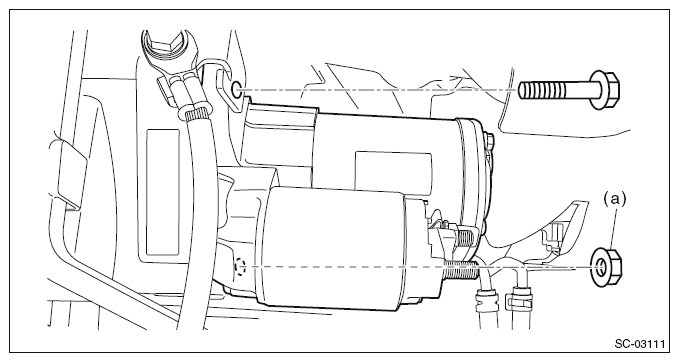

Fig 4: Identifying Starter Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
