Air Cleaner Case: Installation
WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Install the air cleaner case bracket to the vehicle.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

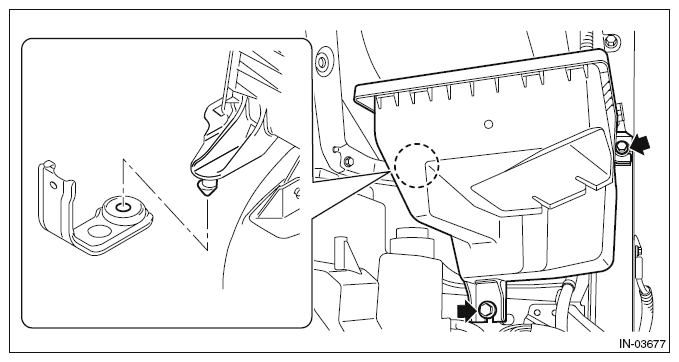

- Install the air cleaner case (front) to the vehicle body and air cleaner case bracket.NOTE: Make sure that the protrusion of the air cleaner case (front) is inserted in the cushion of the air cleaner case bracket.
Tightening torque:
6 N.m (0.6 kgf-m, 4.4 ft-lb)
- Install the air cleaner element. < Ref. to INSTALLATION , Air Cleaner Element. >
