Switch Assembly
WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

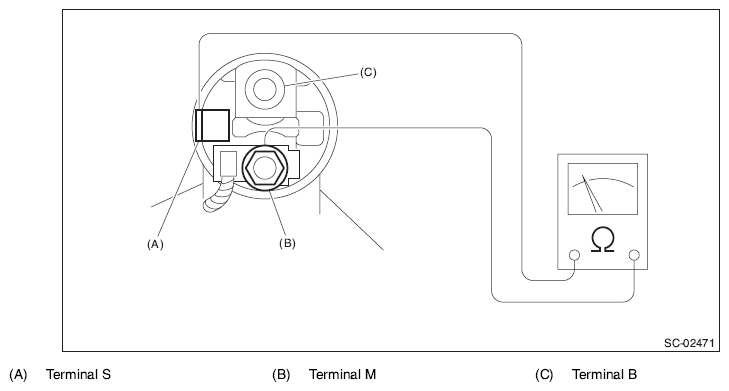

Using a circuit tester, check there is continuity between S terminal and M terminal, and between S terminal and ground. Also, check that there is no continuity between M terminal and B terminal.
| Terminals | Standard |
|---|---|
| Terminal S - terminal M | 1 Ω or less |
| Terminal S - Ground | 1 Ω or less |
| Terminal M - terminal B | 1 MΩ or more |
