Stator Coil

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Continuity test
Inspect the continuity between the stator coil terminals. If continuity is not as shown in the table, replace the stator coil.

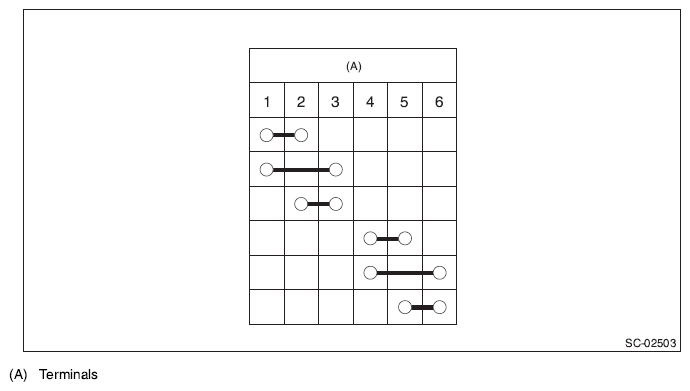

Fig 1: Stator Coil Terminals Continuity Chart
Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Checking Continuity Between Stator Coil Terminals
Courtesy of SUBARU OF AMERICA, INC.
Insulation test
Inspect the continuity between the stator coil stator core and lead wire terminals. If there is continuity, replace the stator coil because the stator coil is grounded.

Fig 3: Inspecting Continuity Between Stator Coil Stator Core And Lead Wire Terminals
Courtesy of SUBARU OF AMERICA, INC.
