Engine Side

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a gasket to thermostat.
    NOTE: Use a new gasket.
  2. Install the thermostat and thermostat cover.

    Tightening torque:

    6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

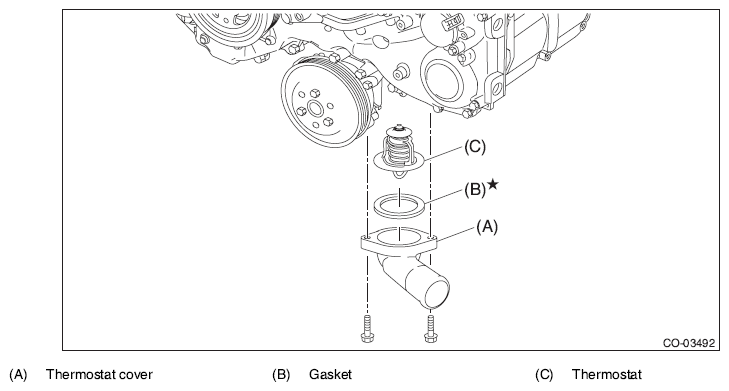

    Fig 1: Identifying Thermostat Cover, Gasket And Thermostat
    G10308731Courtesy of SUBARU OF AMERICA, INC.
  3. Connect the radiator outlet hose to thermostat cover.
    Fig 2: Locating Radiator Outlet Hose Clamp
    G10262999Courtesy of SUBARU OF AMERICA, INC.
  4. Install the front exhaust pipe. < Ref. to INSTALLATION , Front Exhaust Pipe. >
  5. Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  6. Fill engine coolant. < Ref. to FILLING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >
