Reservoir Tank: Installation
WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
- Install the bolts securing the reservoir tank to the radiator fan shroud.
Tightening torque:
7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

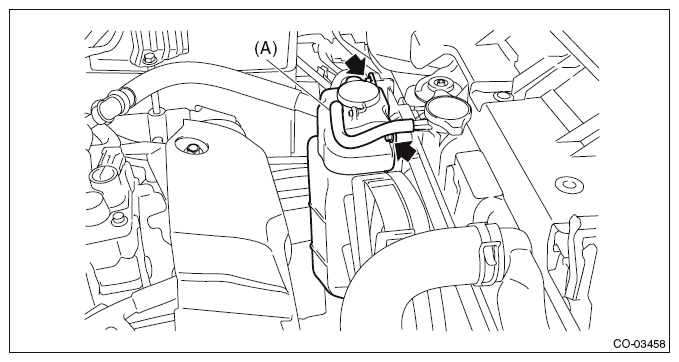

- Insert the over flow hose (A) connected to the radiator filler neck into the reservoir tank.
Courtesy of SUBARU OF AMERICA, INC.
