Instrument Panel

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

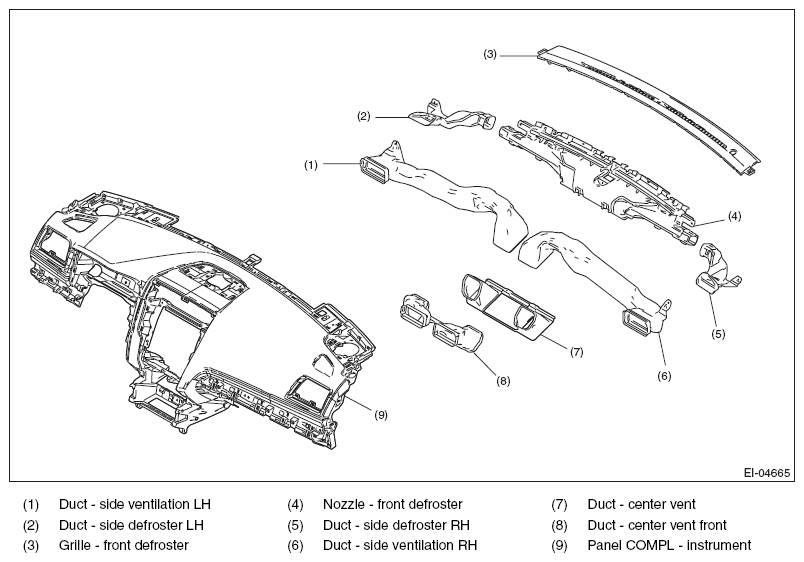

Fig 1: Exploded View Of Instrument Panel (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

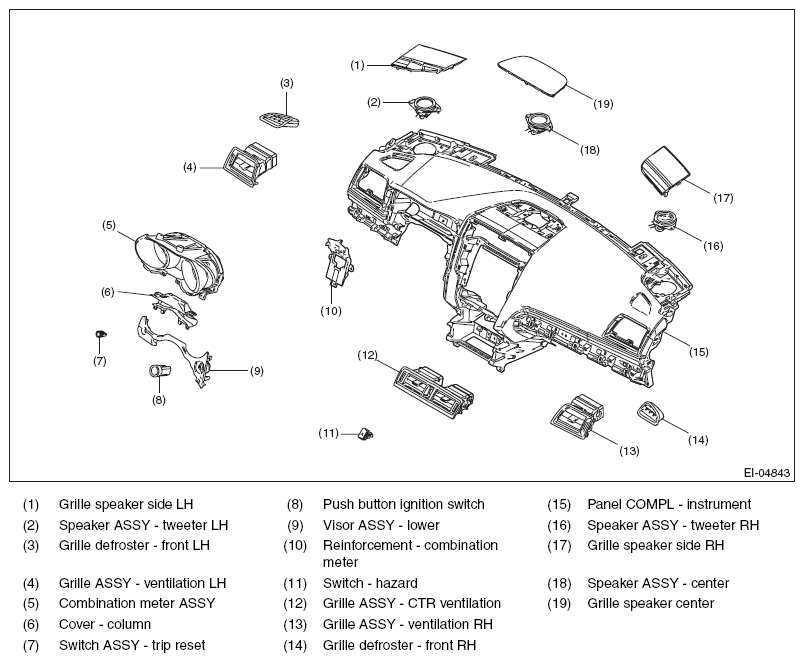

Fig 2: Exploded View Of Instrument Panel (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

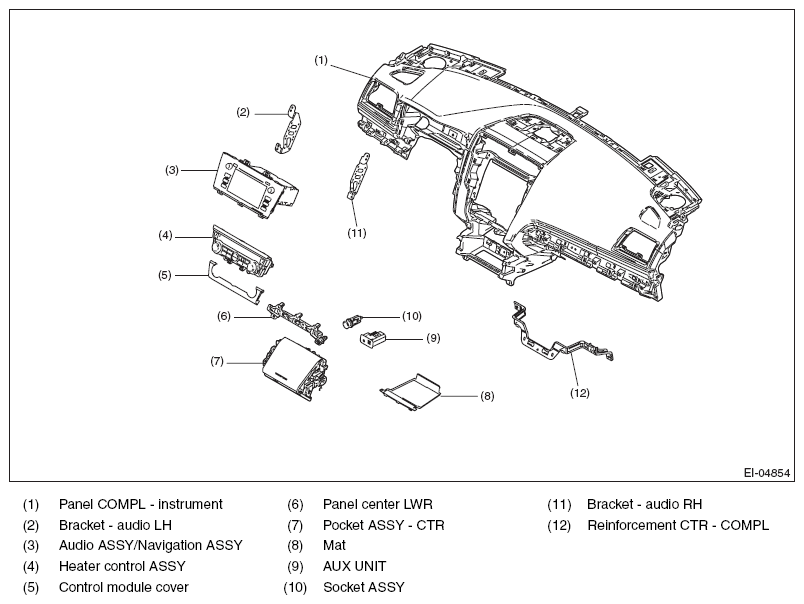

Fig 3: Exploded View Of Instrument Panel (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

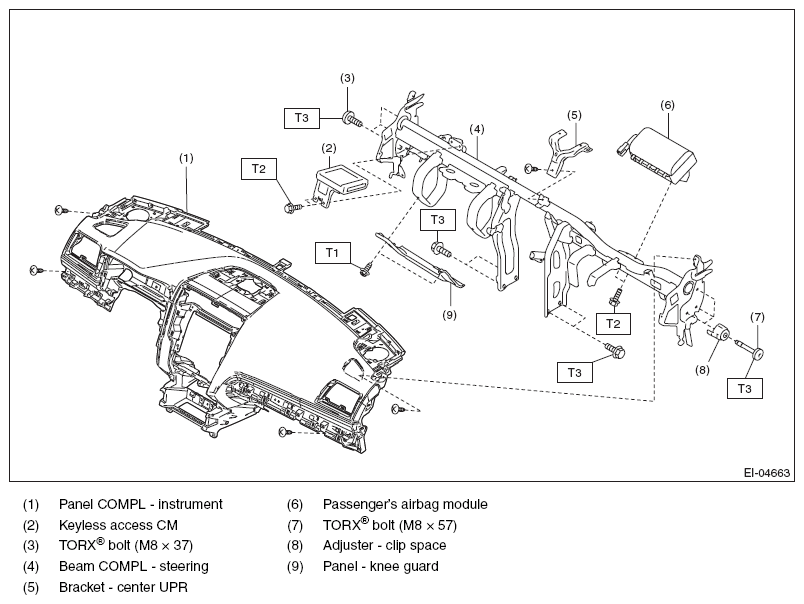

Fig 4: Exploded View Of Instrument Panel (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7 (0.7, 5.2)

T2: 7.5 (0.8, 5.5)

T3: 25 (2.5, 18.4)

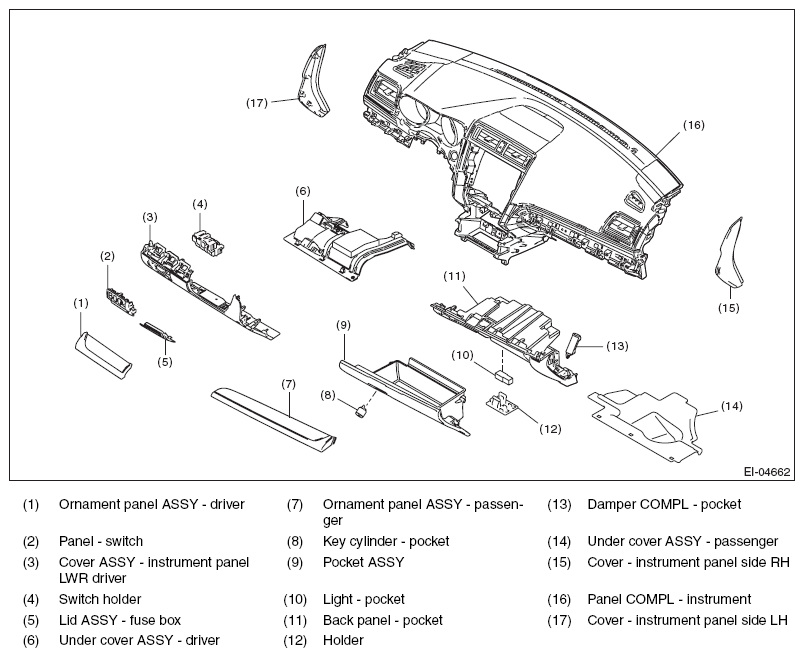

Fig 5: Exploded View Of Instrument Panel (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.
