Inner Trim

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Sedan model

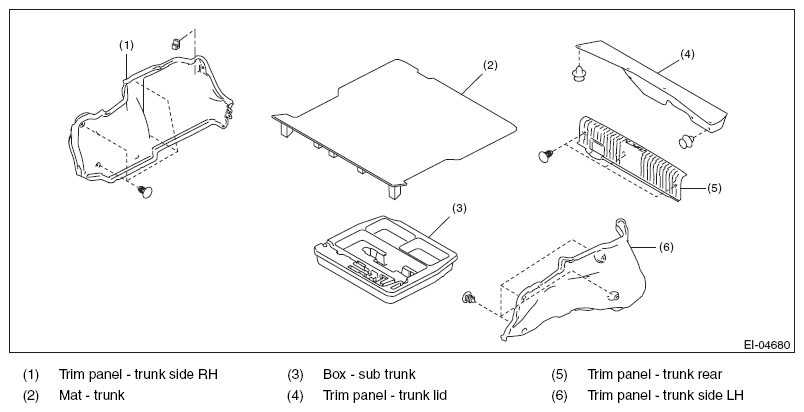

Fig 1: Exploded View Of Inner Trim - Sedan Model (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 53 (5.4, 39.1)

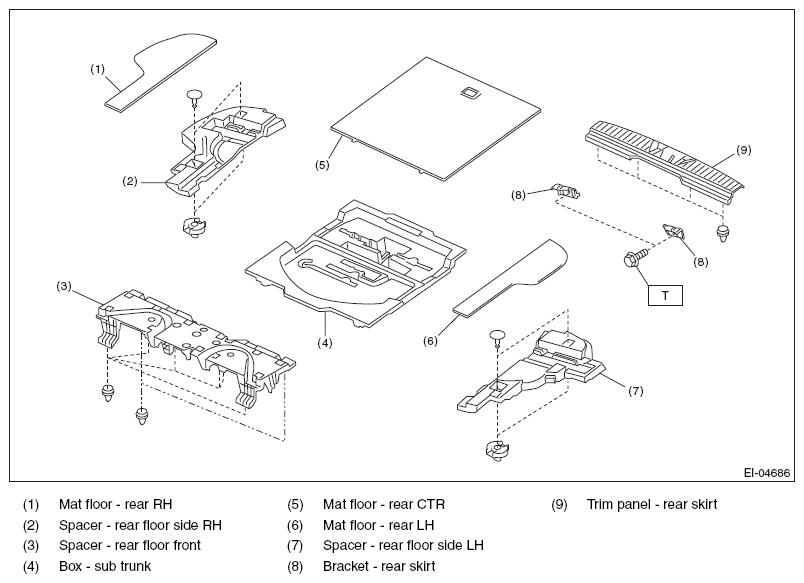

Fig 2: Exploded View Of Inner Trim - Sedan Model (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
OUTBACK model

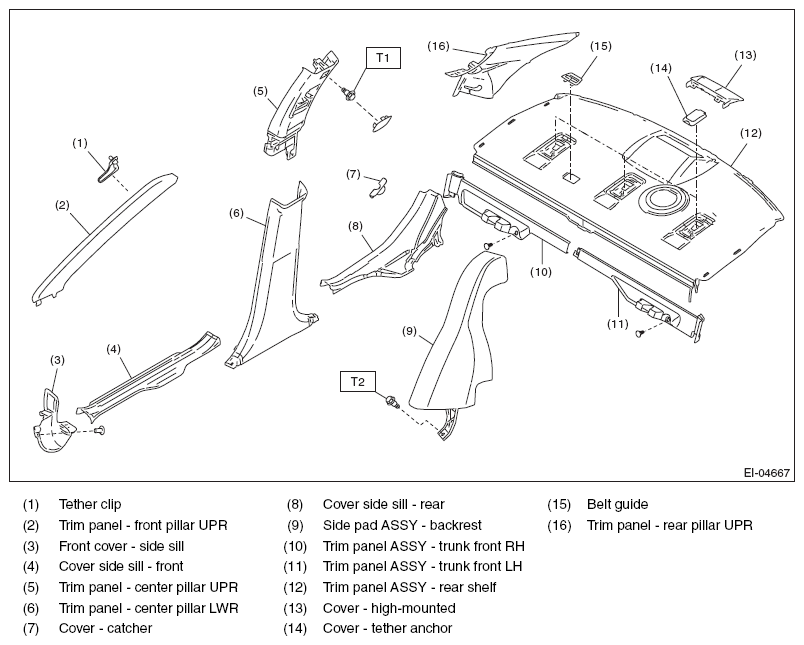

Fig 3: Exploded View Of Inner Trim - Outback Model (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4.5 (0.5, 3.3)

T2: 7.5 (0.8, 5.5)

T3: 53 (5.4, 39.1)

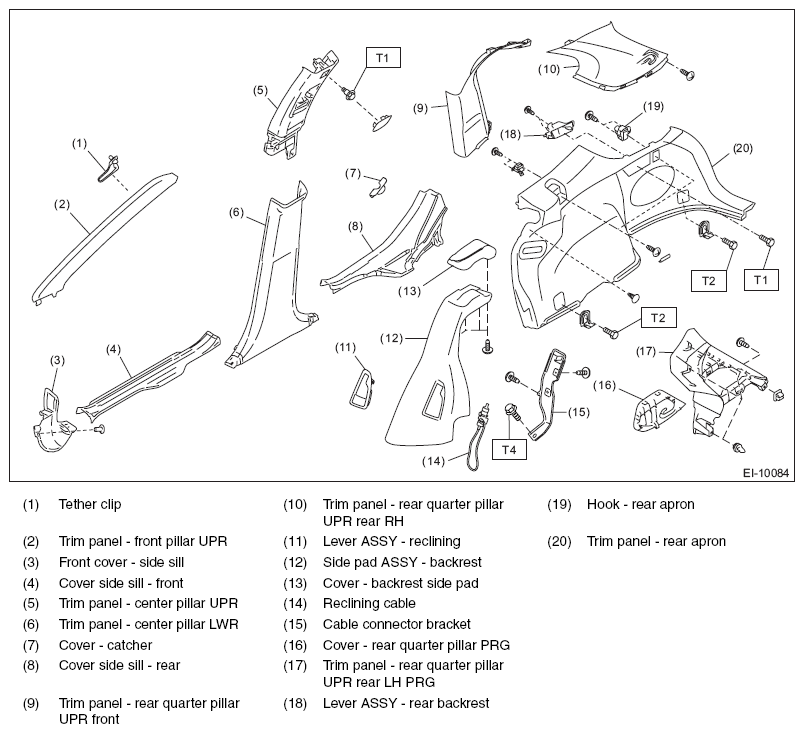

Fig 4: Exploded View Of Inner Trim - Outback Model (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 18 (1.8, 13.3)
