Side Airbag Sensor

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Do not reuse mounting bolts and nuts.

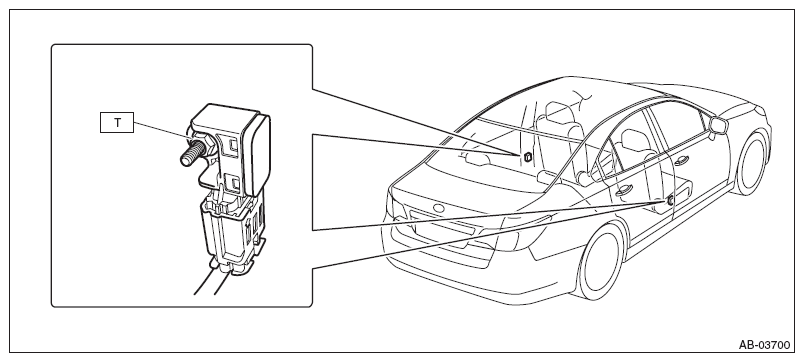

Fig 1: Identifying Side Airbag Sensor Mounting Bolts And Nuts With Torque Specification
G10276922Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
