Curtain Airbag Module

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

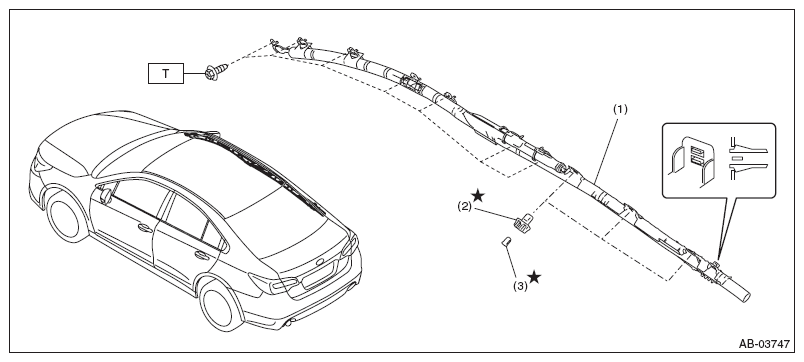

Fig 1: Identifying Curtain Airbag Module Related Components With Torque Specification (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

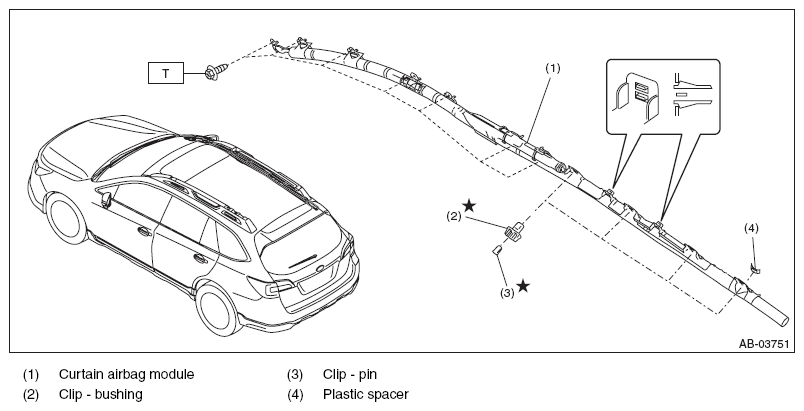

Fig 2: Identifying Curtain Airbag Module Related Components With Torque Specification (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 7.5 (0.8, 5.5)
