Front Sub Sensor: Removal

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Refer to "CAUTION" of "General Description" before handling the airbag system components. < Ref. to CAUTION , General Description. >
  1. Turn the ignition switch to OFF.
  2. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Repair Contents. >
  3. Remove the front sub sensor.
    1. Remove the clips and remove the air intake duct. (When removing the sensor RH)
      Fig 1: Locating Air Intake Duct Clips
      G10262457Courtesy of SUBARU OF AMERICA, INC.
    2. Remove the bolt, and then detach the front sub sensor.
    3. Disconnect the connector of front sub sensor. < Ref. to FRONT SUB SENSOR , PROCEDURE, Airbag Connector. >

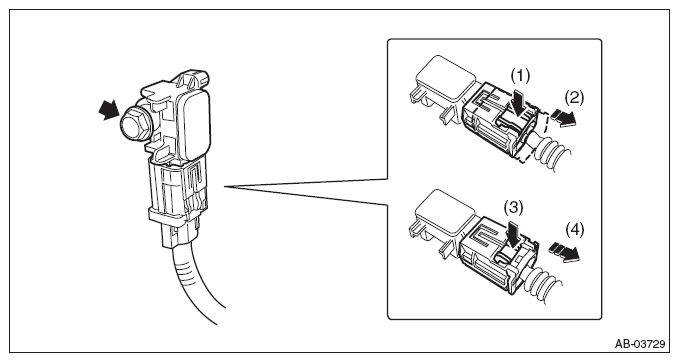

      Fig 2: Disconnecting Connector Of Front Sub Sensor
      G10276985Courtesy of SUBARU OF AMERICA, INC.
