Master Cylinder

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

H4 model

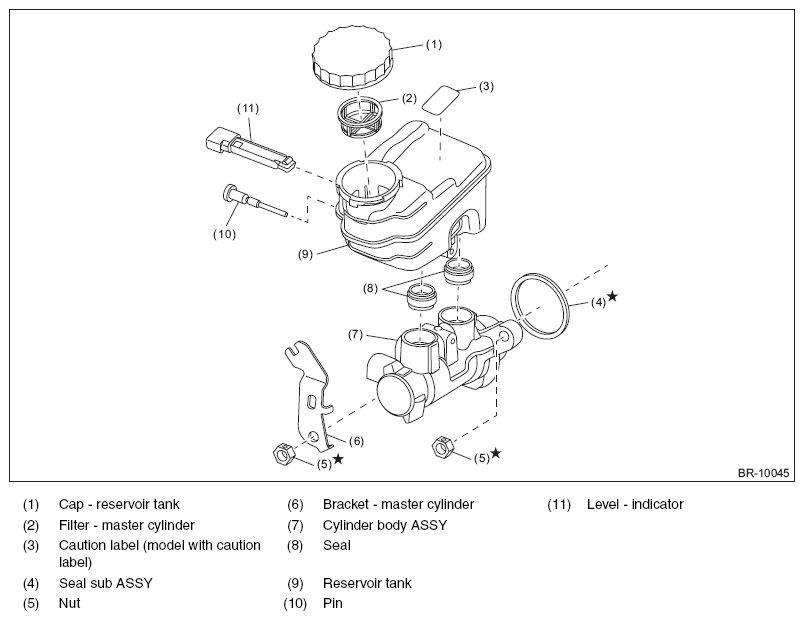

Fig 1: Identifying Master Cylinder Related Components With Torque Specification (H4 Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 13 (1.3, 9.6)

H6 model

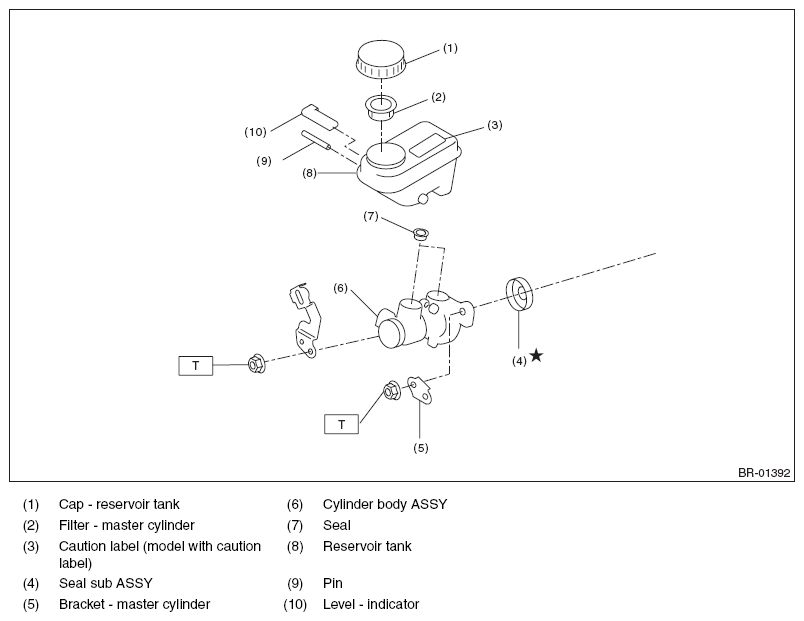

Fig 2: Identifying Master Cylinder Related Components With Torque Specification (H6 Model)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 13 (1.3, 9.6)
