Front Brake Pipes And Hoses

WARNING: This page is about a different car, the 2016 Subaru Outback and 2016 Subaru Legacy. However, it is still accessible from the selected car via links, so may be relevant.

Models without EyeSight

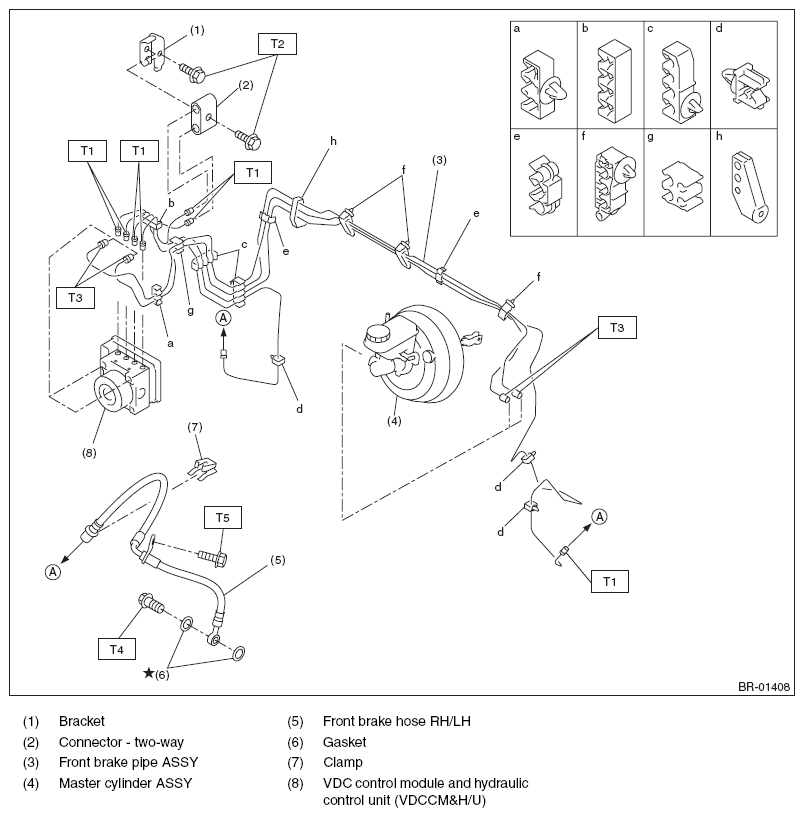

Fig 1: Identifying Front Brake Pipes And Hoses Related Components With Torque Specification (Models Without EyeSight)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 15 (1.5, 11.1)

T2: 18 (1.8, 13.3)

T3: 19 (1.9, 14.0)

T4: 26 (2.7, 19.2)

T5: 33 (3.4, 24.3)

Models with EyeSight

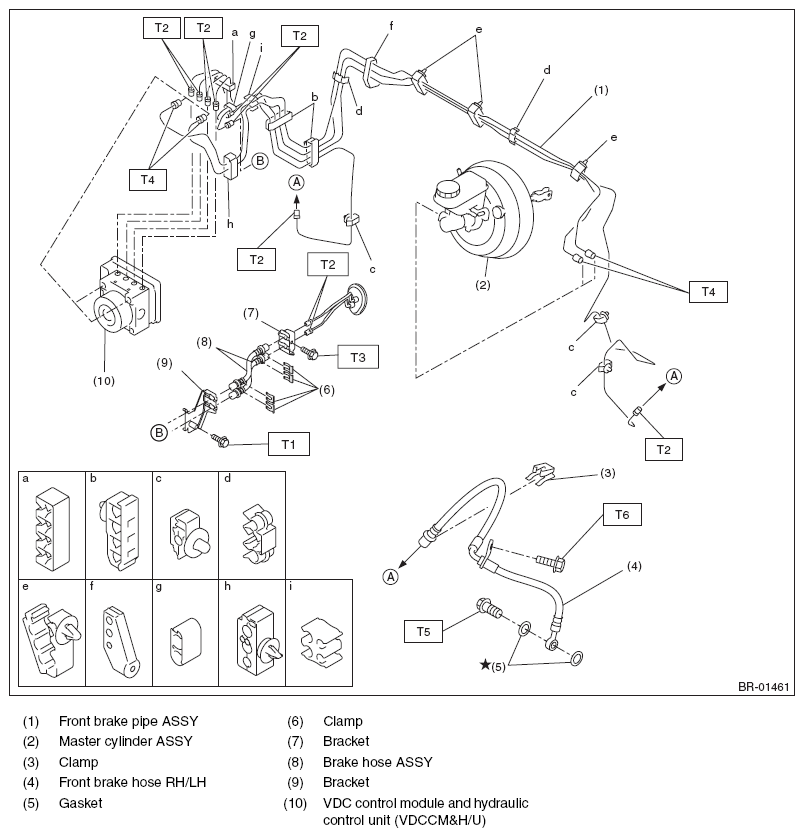

Fig 2: Identifying Front Brake Pipes And Hoses Related Components With Torque Specification (Models With EyeSight)
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 15 (1.5, 11.1)

T3: 18 (1.8, 13.3)

T4: 19 (1.9, 14.0)

T5: 26 (2.7, 19.2)

T6: 33 (3.4, 24.3)
